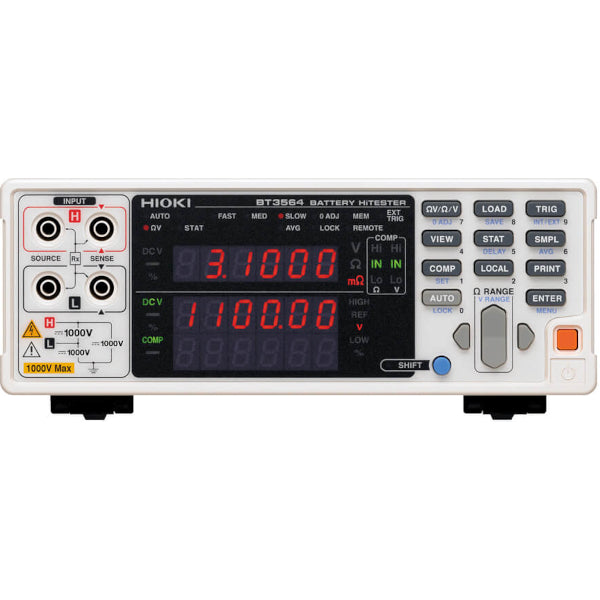

Hioki BT3564 Battery HiTester
44.325,00 incl. VAT
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
1000V Maximum Input Voltage, High-Voltage Battery Tester for Measuring EV and PHEV Battery Packs
Discover the possibilities
More information
Description
Hioki BT3564 Battery HiTester
Hioki benchtop battery testers support simultaneous high-speed measurement of the internal resistance and battery voltage of EV and PHEV battery packs. The Hioki BT3564 Battery HiTester can measure pack voltage and total resistance, as well as bus bar resistance up to 1000V.
Key Features
- Measure high-voltage battery packs up to 1000 V
- Production line testing of high-voltage battery packs for EV, PHEV
- 0.1 μΩ to 3000 Ω internal resistance range (pack total resistance, bus bar resistance)
- Spark discharge reduction function
- Analog output function
- Optional measurement probe available for 1000 V and high-voltage battery packs
Basic specifications
Accuracy guaranteed: 1 year
| Max. applied measurement voltage | ± 1000 VDC rated input voltage ± 1000 VDC max. rated voltage to earth | |||||
|---|---|---|---|---|---|---|
| Resistance measurement ranges | 3 mΩ (max. display 3.1000 mΩ, resolution 0.1 μΩ) to 3 kΩ (max. display 3.1000 kΩ, resolution 0.1 Ω), 7 ranges Accuracy: ±0.5 % rdg. ±5 dgt. (30 mΩ to 3 kΩ range), ±0.5 % rdg. ±10 dgt. (3 mΩ range) Testing source frequency: 1 kHz ±0.2 Hz, testing current: 100 mA (3 mΩ range) to 10 μA (3.000 kΩ range) Open terminal Voltage: 25 V peak (3/30 mΩ ranges), 7 V peak (300 mΩ range), 4 V peak (3 Ω to 3.000 kΩ range) | |||||
| Voltage measurement ranges | 10 V DC (resolution: 10 µV) to 1000V DC (resolution: 1 m V), 3 ranges Accuracy: ±0.01 % rdg. ±3 dgt. | |||||
| Display | 31000 full digits (resistance), 999999 full digits (voltage, 1000 V range: 999999 or 110000), LED | |||||
| Sampling time | FAST: 12 ms, MEDIUM: 35 ms, SLOW: 253 ms (Typ., sampling time depends on supply frequency settings and function.) | |||||
| Total measurement time | Response time + sampling time (Response time for both resistance and voltage are reference value of about 700 ms, depends on measurement object.) | |||||
| Comparator functions | Judgment result: Hi/IN/Lo (resistance and voltage judged independently) Setting: Upper and lower limit, Deviation (%) from reference value Logical ANDed result: PASS/FAIL, calculates the logical AND of resistance and voltage judgment results. Result display, beeper, or external I/O output (open-collector, 35 V, 50 mA DC max.) | |||||
| Analog output | Measured resistance (displayed value, from 0 to 3.1 V DC) | |||||
| Interfaces | External I/O, RS-232C, Printer (RS-232C), GP-IB | |||||
| Power supply | 100 to 240 V AC, 50/60 Hz, 30 VA max. | |||||
| Dimensions and mass | 215 mm (8.46 in) W × 80 mm (3.29 in) H × 295 mm (12.95 in) D, 2.4 kg (84.7 oz) | |||||
| Included accessories | Instruction manual ×1, Power cord ×1 , Operating Precautions ×1 | |||||
For more information: Hioki
Documents
Hioki BT3564 Battery HiTester
Hioki BT3564 DatasheetOptions
Hioki BT3564 Battery HiTester
Model No. (Order Code)
| BT3564 |
|---|
Note: Measurement leads are not included. Purchase the appropriate lead option for your application separately. The male (system side) of the EXT I/O connector is also available.
Video
Hioki BT3564 Battery HiTester
The De Facto Standard of Battery Testers
The HIOKI BT356x series These highly advanced battery testers are best suited for shipping and acceptance inspections of cells and battery packs. They simultaneously measure internal resistance and the battery’s open-circuit voltage (OCV). Since the AC-IR measurement method is used, the measurement time is shortened. In addition, highly repeatable results are attained with this method. These testers have a highly accurate 3 mΩ range, allowing for a resistance measurement of battery tab welding and bus bars. All of this combines for the best choice in battery testers. High input voltage applications The input high voltage (1,000 V) model, BT3564, can measure the total resistance of the battery whole pack at once. *Watch with the video subtitles on, to see detailed descriptions.Hioki BT3564 Battery HiTester
Hioki benchtop battery testers support simultaneous high-speed measurement of the internal resistance and battery voltage of EV and PHEV battery packs. The Hioki BT3564 Battery HiTester can measure pack voltage and total resistance, as well as bus bar resistance up to 1000V.
