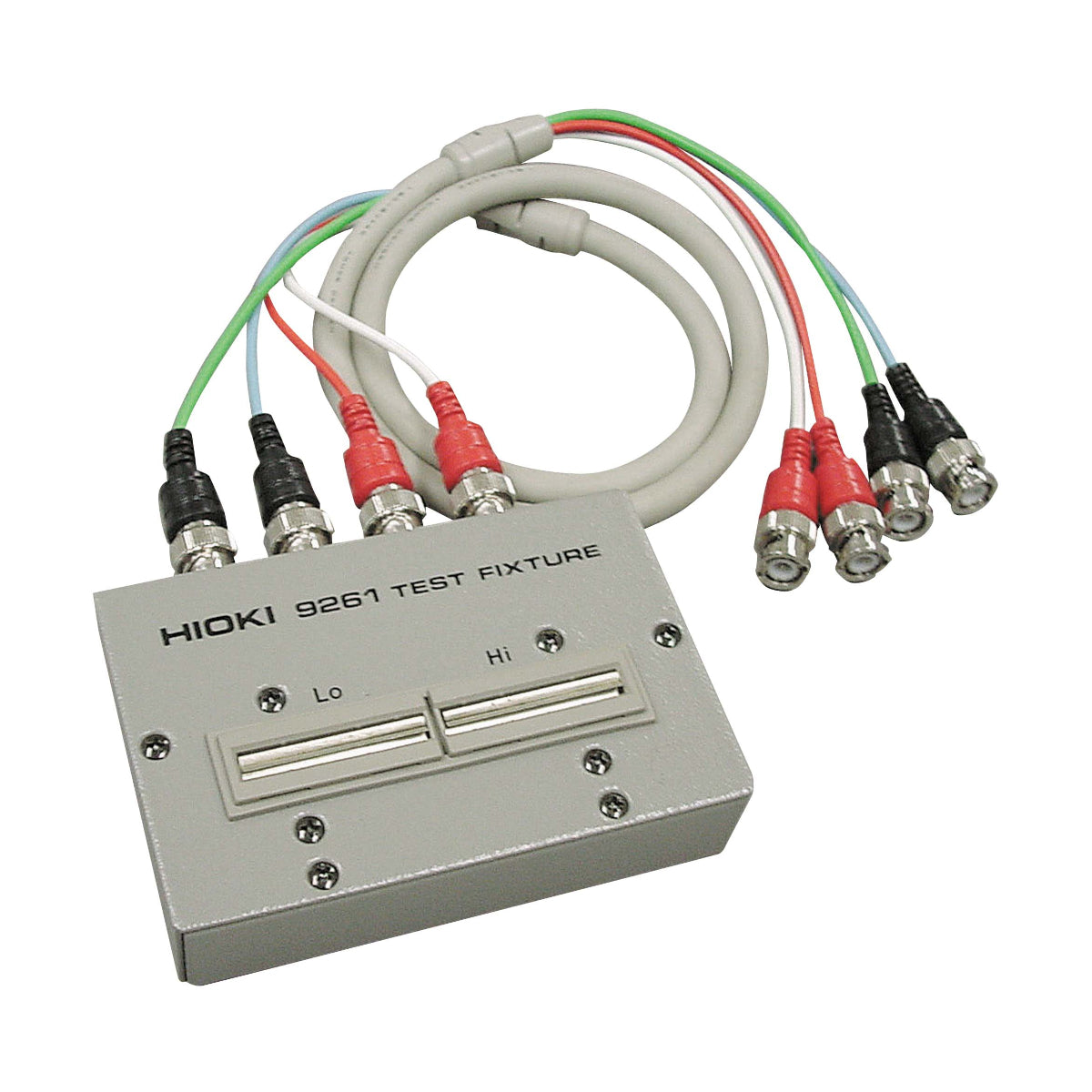

Hioki 9261 Test Fixture
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Compatible with: IM3590, IM3570, IM3533, IM3523, and similar products
- Components: Test box, 1m 4-pole BNC cable
- Impedance: 50 Ohms
- Measurement range: DC to 8 MHz
- Test object conductor diameter: 0.3 mm to 1.5 mm
Discover the possibilities
More information
Description
The test fixture 9261-10 is designed for use with IM3590, IM3570, IM3533, IM3523, and similar products. It consists of a test box and a 1-meter 4-pole BNC cable, offering an impedance characteristic of 50 Ohms. The fixture supports measurements within a range from DC to 8 MHz. It accommodates test objects with conductor diameters from 0.3 mm to 1.5 mm, making it suitable for various precision testing tasks.
Specifications
Documents
Options
Video
The test fixture 9261-10 is designed for use with IM3590, IM3570, IM3533, IM3523, and similar products. It consists of a test box and a 1-meter 4-pole BNC cable, offering an impedance characteristic of 50 Ohms. The fixture supports measurements within a range from DC to 8 MHz. It accommodates test objects with conductor diameters from 0.3 mm to 1.5 mm, making it suitable for various precision testing tasks.
