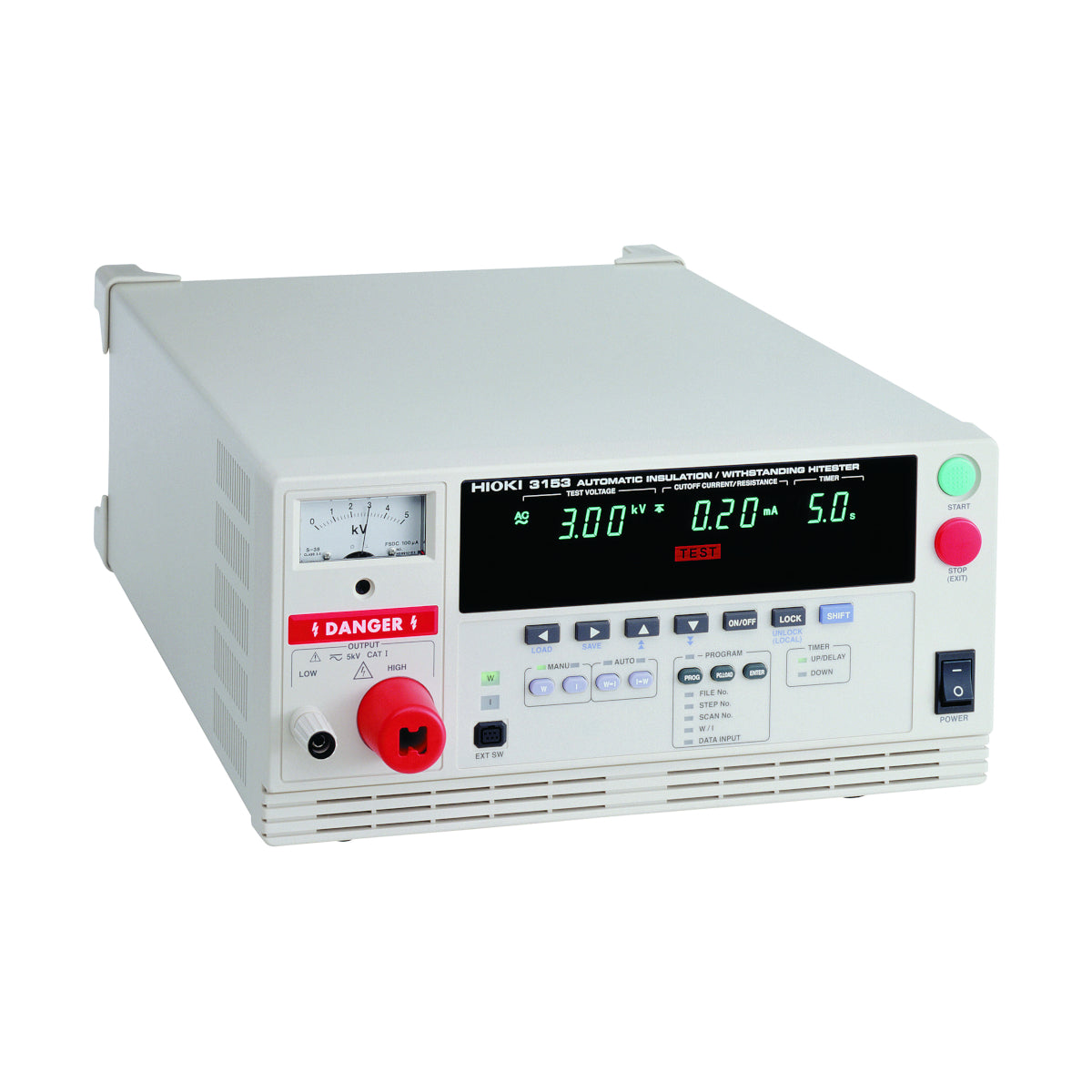

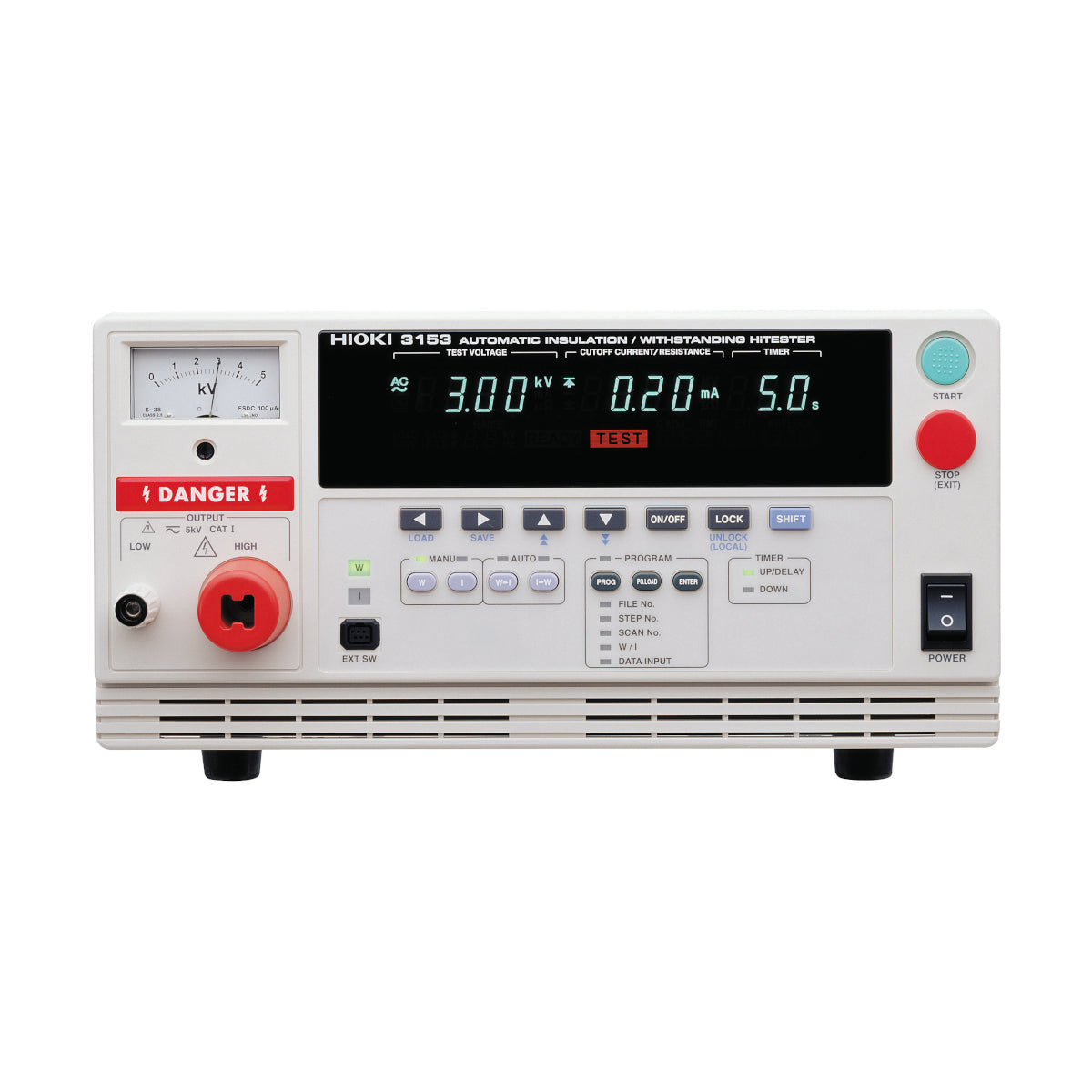

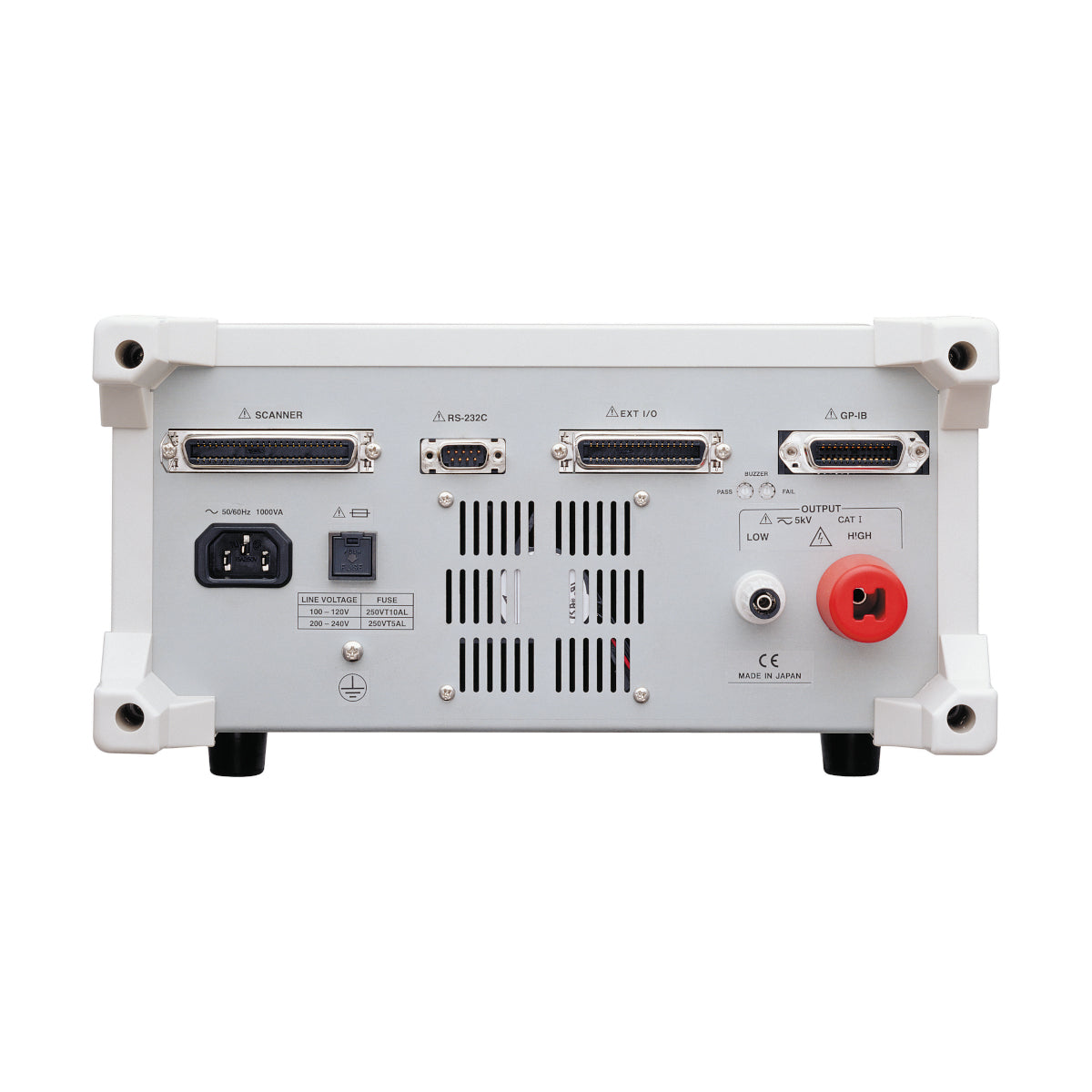

Hioki 3153 Automatic Insulation/Withstanding HiTester
Expected delivery time is 4-5 weeks
Use our chat for personal support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
All-in-one Model that Combines Withstand Voltage and Insulation Resistance (AC/DC)
){kind=link}
Discover the possibilities
More information
Description
The Hioki electrical safety testers are designed for insulation resistance and voltage withstand testing of electrical devices and components according to various safety standards. The 3153 is an automatic insulation and AC/DC voltage withstanding tester that fully supports automated testing.
Key Features
- Programmable insulation (50 V to 1200 V DC) and dielectric strength (AC/DC) testing
- Program up to 32 files of test types, test points (50 steps), and measurement settings
- Optional scanner for multipoint automatic testing
- Uses the PWM method to generate accurate test voltages that do not depend on the supply voltage
- Ramp timer function for increasing or decreasing the applied voltage during dielectric strength testing at user-specified times
Specifications
Basic specifications
Accuracy guaranteed: 1 year
| Functions | Program up to 32 files of 50 step test settings. 10 sets each of dielectric strength and insulation test settings, hold, buzzer | |||||
|---|---|---|---|---|---|---|
| Monitor functions | Output voltage, detected current, measured resistance, Refresh rate: 2 times/s | |||||
| Power supply | 100 to 120 V, 200 to 240 V AC, (50/60 Hz), 1000 VA max. | |||||
| Dimensions and mass | 320 mm (12.60 in) W × 155 mm (6.10 in) H × 480 mm (18.9 in) D, 18 kg (634.9 oz) | |||||
| Included accessories | H.V. Test Lead 9615 (high voltage side and return, 1 each) ×1, Power cord ×1, Instruction manual ×1, Spare fuse ×1 | |||||
Withstanding test
| Testing voltage AC/DC | 0.2 kV to 5.00 kV AC, 500 VA (max. 30 minutes), 0.2 kV to 5.00 kV DC, 50 VA (continuance) | |||||
|---|---|---|---|---|---|---|
| Voltage setting | Digital setting (0.01 kV setting resolution) | |||||
| Waveform/Frequency | Sine wave (5% or less distortion, unloaded), 50/60 Hz selectable | |||||
| Current measurement | 0.01 mA to 100.0 mA, Average rectified display (Digital) | |||||
| Measurement range | 10 mA (0.01 mA resolution), 100 mA (0.1 mA resolution) | |||||
| Voltmeter | Digital: accuracy ±1.5 % f.s. (f.s.=5.00 kV) (Average rectified display) | |||||
| Decision method | Window comparison (digital settings) | |||||
Insulation test
| Rated testing voltage | 50 to 1,200 V DC (in 1 V steps) | |||||
|---|---|---|---|---|---|---|
| Rated testing current | 1 mA, Short-circuit current: 200 mA or less | |||||
| Measurement range/accuracy | 0.10 to 9999 MΩ, 4 ranges, ± 4 % rdg. (representative values for 0.5 MΩ to 1,000 MΩ) | |||||
| Decision method | Window comparison (digital settings) | |||||
Timer
Test times may differ from set timer times depending on the load.
| Setting range | 0.3 to 999 s | |||||
|---|---|---|---|---|---|---|
| Ramp/delay | Testing voltage ramp-up, or down, Insulation test delay: 0.1 to 99.9 s | |||||
