PONTIS EMC HDCam6E High Resolution EMC Hardened Colour Camera
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- For regular demands in HD
- 1080 p from sensor to display
- Economic HD solution
Discover the possibilities
More information
Description

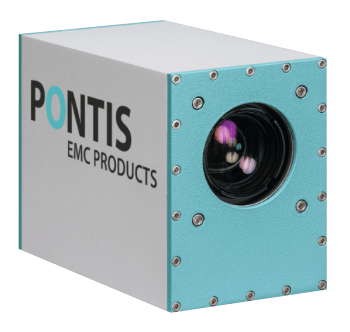

PONTIS EMC HDCam6E High Resolution EMC Hardened Colour Camera
The HDCam6E camera is shielded up to 200 V/m at a resolution of 2 Megapixel. It offers the best resolution available and is especially suited where the HD resolution (1080p) is needed (e.g. for monitoring HD displays) or an extreme Zoom is needed (30 times optical zoom).
The camera includes wide dynamic range (WDR) and digital noise reduction (DNR), that eliminates noise and thus is generating a distinct and clear image. The video signal is transferred uncompressed in HD-SDI (HD-CCTV) format to the controller. Thus it is ideal for optical post processing e.g for automatic change or error detection during immuni- ty testing. PONTIS offers a special software for automated surveillance.
The camera can be operated remotely by the PONTIS EMC HD camera controllers.
Features:
- RF-immunity 200 V/m up to 18 GHz
- EMC compliant to CISPR 25 Class 5
- Automatic / manual focus
- Iris control (manually, for difficult light conditions)
- 30 times optical zoom
- Compact housing (108 x 80 x 158 mm)
- Full HD: 1080 p from sensor to display
Accessories:
Required:- Power supply: PSMxx, optional battery PSBxx
- Controller (zoom, focus, P/T): HDCONxxx
- Fibre optic cables: variable lengths ST/FSMA- connector
- Monitor: HDMI, DVI
Optional:
- Remotely controlled Pan/Tilt
- Tripods and wall mounts
- External DVR device
- Remote access via external LAN
- Controller with integrated LAN-Pecos_DVR for customized event detection and recording
