GRAS 67AD ø400 mm CCP Ground Array Microphone Kit
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
Typical applications and use
- Vector-intensity measurements
- Soundfield mapping
- Sound-source location
- Near-field investigations
Discover the possibilities
More information
Description

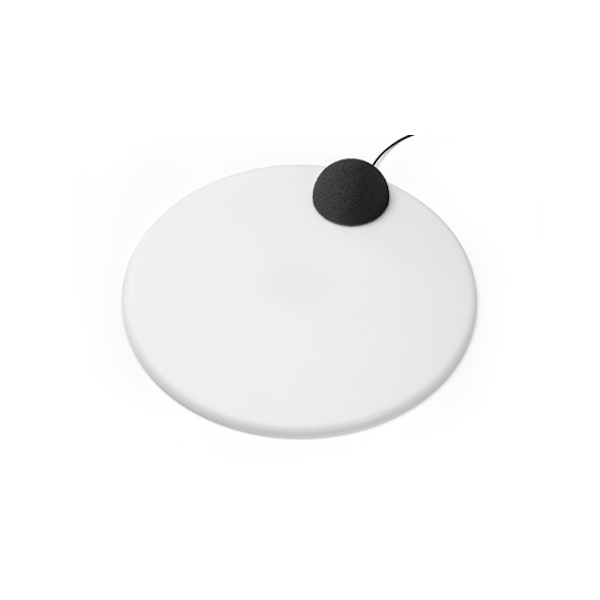

GRAS 67AD ø400 mm CCP Ground Array Microphone Kit
Typical applications and use
- Ground array measurements
- General noise measurements
- Ideal for the aerospace industry
Design
The microphone set is designed to sit asymmetrically in the mounting to attain a more uniform frequency response for measurements.The microphone is a IEC 61094 prepolarized pressure microphone with a dynamic range from 18 dB to 138 dB and a frequency range from 3.15 Hz to 20 kHz. Its height of only 8 mm (to the diaphragm) is the ideal match for the design of the 67AD. The built-in preamplifier is a low noise constant current power (CCP) type, with a built-in TEDS circuit for automatic transducer identification.
Documents
GRAS 67AD ø400 mm CCP Ground Array Microphone Kit
GRAS 67AD ø400 mm CCP Ground Array Microphone Kit datasheetOptions
Video
GRAS 67AD ø400 mm CCP Ground Array Microphone Kit
Typical applications and use
- Ground array measurements
- General noise measurements
- Ideal for the aerospace industry
Design
The microphone set is designed to sit asymmetrically in the mounting to attain a more uniform frequency response for measurements.The microphone is a IEC 61094 prepolarized pressure microphone with a dynamic range from 18 dB to 138 dB and a frequency range from 3.15 Hz to 20 kHz. Its height of only 8 mm (to the diaphragm) is the ideal match for the design of the 67AD. The built-in preamplifier is a low noise constant current power (CCP) type, with a built-in TEDS circuit for automatic transducer identification.
