GRAS 43AB 1/2'' 2cc Coupler Kit According to IEC 60318-5
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk

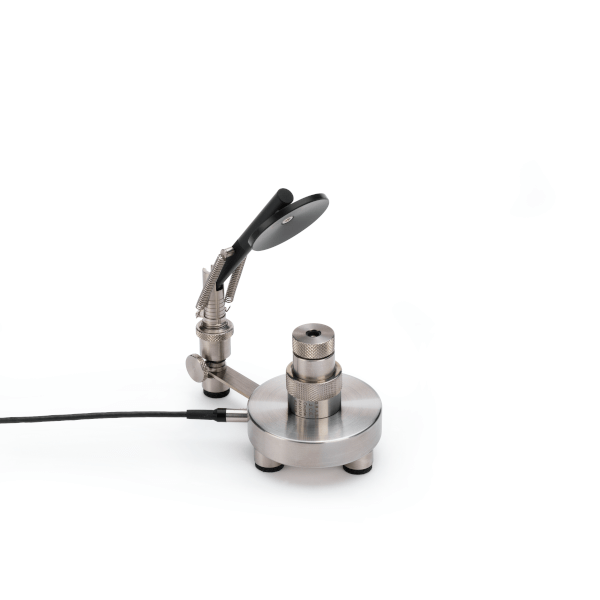

The GRAS 43AB Artificial Ear is a complete test jig for acoustical measurements of hearing aids in accordance with IEC 60318-5 (60126) and ANSI S3.7 -1995 on insert type hearing aids in accordance with:
- IEC 60318-5 (60126) reference coupler for the measurement of hearing aids using earphones coupled to the ear by means of ear inserts.
- ANSI S3.7-1995 American National Standard for Coupler Calibration of Earphones.
%20and%20ANSI%20S3.7%20-1995%20on%20insert%20type%20hearing%20aids%20in%20accordance%20...
){kind=link}
Discover the possibilities
More information
Description
GRAS 43AB 1/2'' 2cc Coupler Kit According to IEC 60318-5
The GRAS 43AB Artificial Ear is a complete test jig for acoustical measurements of hearing aids in accordance with IEC 60318-5 (60126) and ANSI S3.7 -1995 on insert type hearing aids in accordance with:- IEC 60318-5 (60126) reference coupler for the measurement of hearing aids using earphones coupled to the ear by means of ear inserts.
- ANSI S3.7-1995 American National Standard for Coupler Calibration of Earphones.
The 43AB comprises:
- IEC 60318-5 (60126) 2-cm³ Coupler GRAS RA0038
- GRAS 40AG ½" Pressure Microphone
- GRAS 26AC ¼" Preamplifier
- GRAS RA0052 Test Jig
- Studs and moulds for BTE and ITE instruments
The Test Jig has an adjustable spring-loaded arm to exert a variable force on the test object.
Documents
GRAS 43AB 1/2'' 2cc Coupler Kit According to IEC 60318-5
GRAS 43AB 1/2'' 2cc Coupler Kit According to IEC 60318-5 datasheetOptions
Video
GRAS 43AB 1/2'' 2cc Coupler Kit According to IEC 60318-5
The GRAS 43AB Artificial Ear is a complete test jig for acoustical measurements of hearing aids in accordance with IEC 60318-5 (60126) and ANSI S3.7 -1995 on insert type hearing aids in accordance with:- IEC 60318-5 (60126) reference coupler for the measurement of hearing aids using earphones coupled to the ear by means of ear inserts.
- ANSI S3.7-1995 American National Standard for Coupler Calibration of Earphones.
The 43AB comprises:
- IEC 60318-5 (60126) 2-cm³ Coupler GRAS RA0038
- GRAS 40AG ½" Pressure Microphone
- GRAS 26AC ¼" Preamplifier
- GRAS RA0052 Test Jig
- Studs and moulds for BTE and ITE instruments
The Test Jig has an adjustable spring-loaded arm to exert a variable force on the test object.
