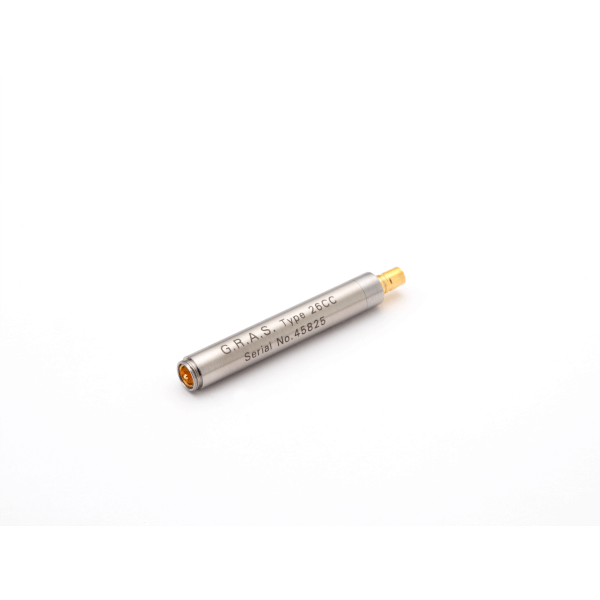

GRAS 26CC 1/4" CCP Standard Preamplifier with SMB Connector

GRAS 26CC 1/4" CCP Standard Preamplifier with SMB Connector

Typical applications and use

• CCP inputs
• Plugs into Array Module PR0001(-1)
• Prepolarized microphones
• 1/4" precision microphones
• High levels and high frequencies

Design

The GRAS 26CC 1/4" Preamplifier's small ceramic thick-film substrate has a very high input impedance, and is shielded by a guard ring to minimise the influence of stray capacitance and microphonic interference.

The 26CC is delivered with a built-in TEDS chip, and can be programmed as a single unit with a microphone fitted. It can be used with GRAS 40BE and 40BD ¼-inch prepolarized microphones and 40AE, 40AD and 40AQ ½-inch microphones using the included GRAS GR0010 Adapter for 1/4" preamplifier and 1/2" microphone.

SMB-to-BNC cables in standard and customized lengths are available. The casing is made of stainless steel for maximumstrength and durability.
