DEMO - Svantek SV 803 Wireless Vibration Monitor
Use our chat for technical support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Number of channels - 3
- Remote system check - ✓
- Remote communication - ✓
- Bluetooth - ✓
- GPS module - ✓
- Communication Interfaces - 4G, Bluetooth, 2xWEIPU
- LED indicator - ✓
- Keyboard - 3 pushing buttons
- Memory - 32 GB
- Battery type - Li-Ion battery
Discover the possibilities
More information
Description

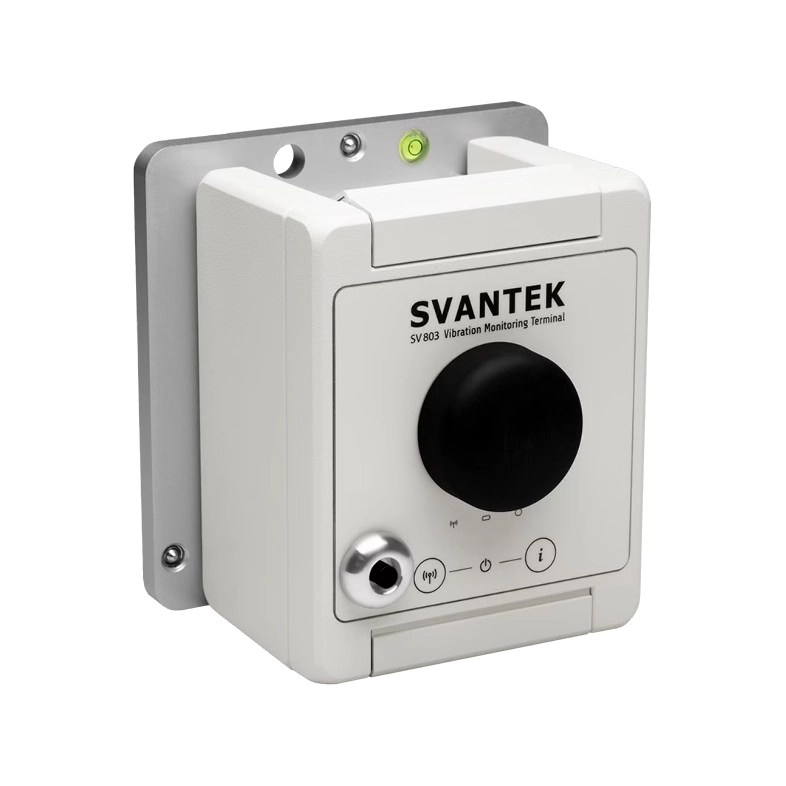

SV 803 is an advanced wireless vibration monitoring station designed for both short- and long-term building and ground vibration monitoring in any environment. Equipped with high-sensitivity geophones, the SV 803 provides triaxial measurements of velocity, Peak Particle Velocity, and Dominant Frequency—fully compliant with international standards. Ultra-efficient battery operation, up to 6 months of autonomy, and optional solar panel support ensure long-lasting, maintenance-free performance. Secure data transfer, real-time spectrum analysis, and time-domain signal recording make SV 803 the modern standard for environmental vibration monitoring.
Highlights
- Wireless Class 1 vibration monitoring: Designed to meet the highest standards, including ISO 4866, BS 7385-1, and DIN 45669-1.
- Advanced specifications: Ensure accurate and reliable building and ground vibration measurements.
- Full standards compliance: Fully meets DIN 4150-3 and BS 7385-2 requirements.
- Ideal solution: Perfectly suited for engineering projects and long-term field applications.
Features
AMS Wireless Vibration Monitor
Seamless, automated vibration monitoring and reporting.
SV 803 transmits vibration data wirelessly via 4G modem to the SvanNET AMS platform, enabling automated data management, real-time alarms, and ready-to-use reports compliant with ISO and DIN standards. The integration of device and cloud service ensures reliable, unattended vibration monitoring for any project.
Vibration Analysis Tool
Real-time detection of building and ground vibration events.
SV 803 measures vibration velocity according to DIN 4150-3 and BS 7385-2, using Peak Particle Velocity and Dominant Frequency methods powered by FFT analysis. Advanced onboard processing enables instant SMS and email alerts, ensuring timely response to vibration events in any industrial environment.
Wireless Vibration Sensor Integration
Unified monitoring for large-scale projects.
SV 803 integrates seamlessly with wireless noise, dust, and weather monitoring devices in the SvanNET platform, enabling combined data collection and analysis across extensive sites. This all-in-one solution provides comprehensive, user-friendly monitoring for transportation, construction, and industrial applications.
Mobile Application for Remote Connection
Bluetooth-enabled monitoring and support from anywhere.
SV 803 features Bluetooth connectivity for easy setup, real-time status checks, and troubleshooting via a mobile app. Remote access to both the device and SvanNET ensures efficient monitoring and quick problem resolution—even in hard-to-reach locations.
Applications
Building and Ground Vibrations
Autonomous wireless monitoring for construction, mining, and infrastructure projects.
SV 803 continuously monitors building and ground vibrations, automatically triggering detailed frequency analysis when events occur. Integrated GPS ensures precise time and location data, while wireless connectivity enables remote access, configuration, and reliable data collection for long-term, large-scale monitoring applications.
Specifications
Applications
- Building/ground vibration: ✓
Hardware Features
- Number of channels: 3
- Self-vibration detection: -
- Auto-calibration: -
- Remote system check: ✓
- Remote communication: ✓
- Bluetooth: ✓
- GPS module: ✓

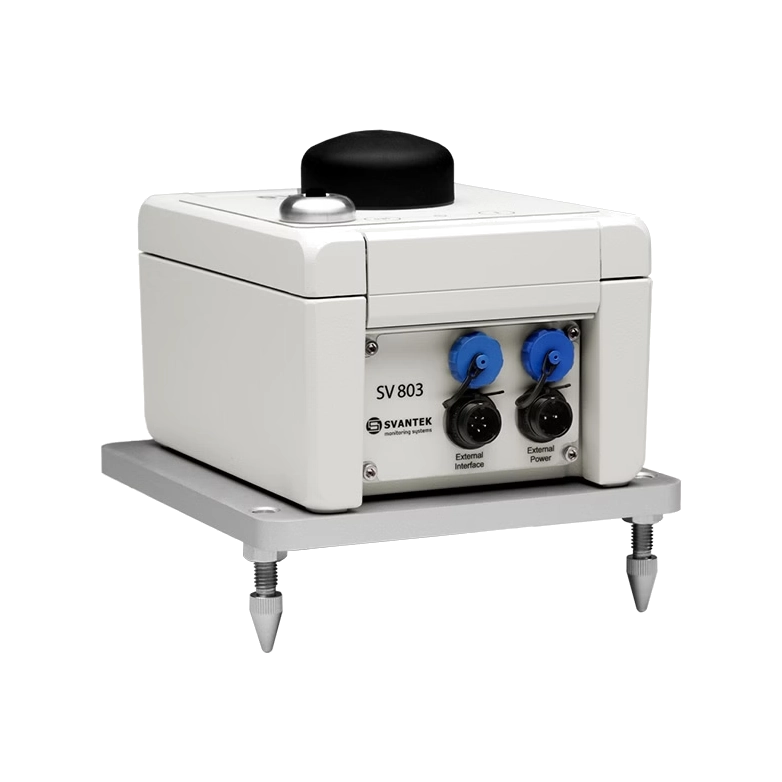

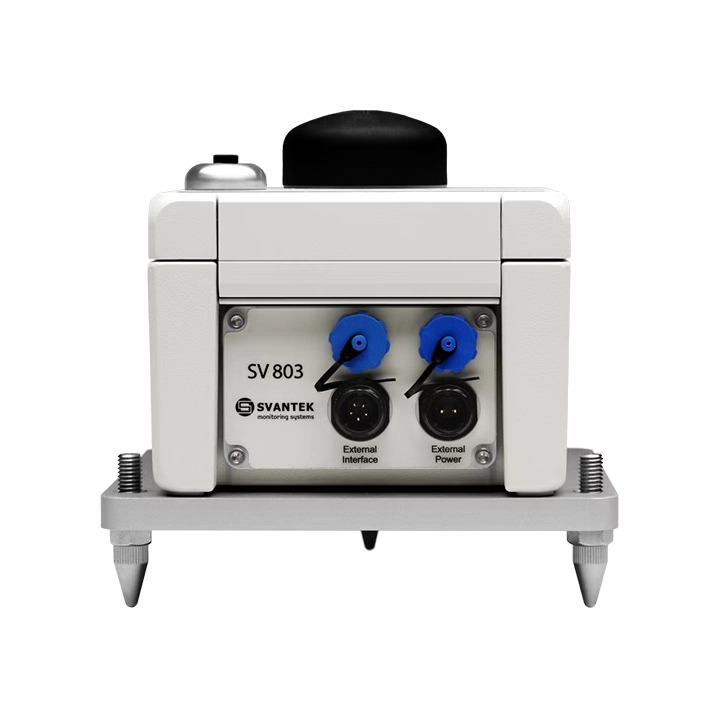

- Communication Interfaces: Cellular modem, Bluetooth, 2xWEIPU
- LED indicator: ✓
- Display: -
- Keyboard: 2 pushing buttons
- Memory: 32 GB
- Battery type: Li-Ion battery
- Operating time: UNLIMITED with SB 803 battery pack and solar panel in power saving mode
- Operating temperature range: -20 °C ÷ +50 °C
- Humidity range: 0 - 100 % RH

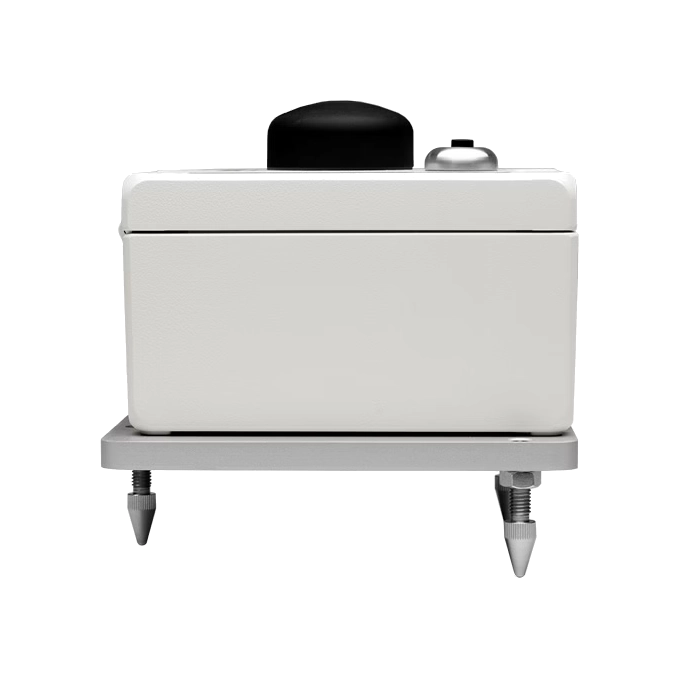

- Weight: 3,5 kg including battery and mounting platform
- Size: 163 x 128 x 115 mm
- IP rate: IP67
Vibration measurement features

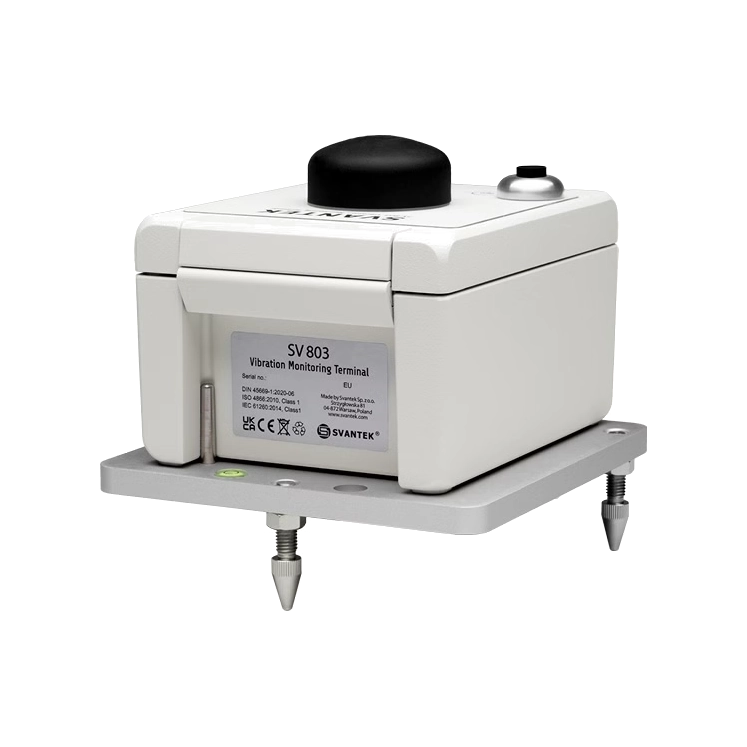

- Standards: DIN 45669-1:2020-06; DIN 4150-3:2017-12; BS 7385-2:1993; ISO 4866:2010, Class 1; IEC 61260:2014, Class 1
- Number of channels: 3
- Sensor type: Tri-axial geophone
- Measurement range: 3 μm/s ÷ 100 mm/s RMS (141 mm/s Peak)
- Frequency range: 0,8 Hz ÷ 500 Hz (-3 dB)
- Profiles per channel: 3
- Weighting filters: DIN 80, DIN 315, VEL1, KB, HP
- Time constants: Fast 125 ms in accordance to DIN 4150-2
- Min logging step: 1s
- 1/1 octave: -
- 1/3 octave: ✓
- WAV recording: ✓
- FFT: ✓
Options
Video
Wireless Vibration Monitor
See how the SV 803 delivers reliable vibration monitoring for any industry, with wireless connectivity, intuitive operation, and exceptional battery life for hassle-free deployment.
Vibration Meets Noise
Discover the benefits of integrating the SV 803 vibration monitor with the SV 303 noise monitor for comprehensive, real-time analysis of both vibration and sound in complex industrial and environmental settings.
