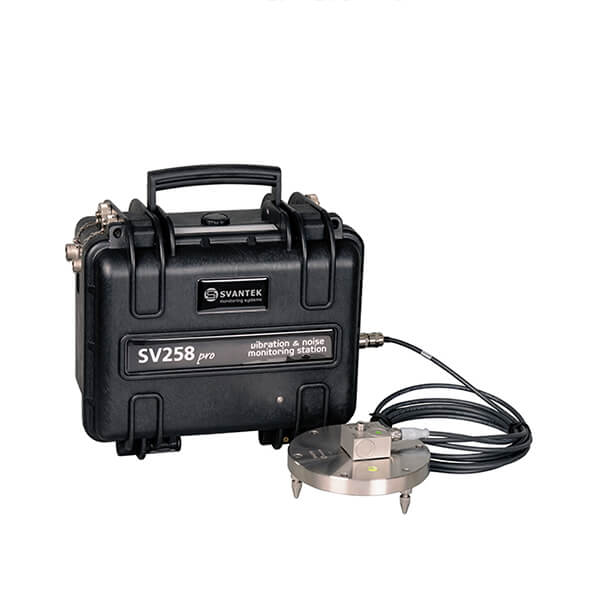

DEMO - Svantek SV 258 PRO Vibration and Noise Monitoring Station
67.200,00 incl. VAT
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk

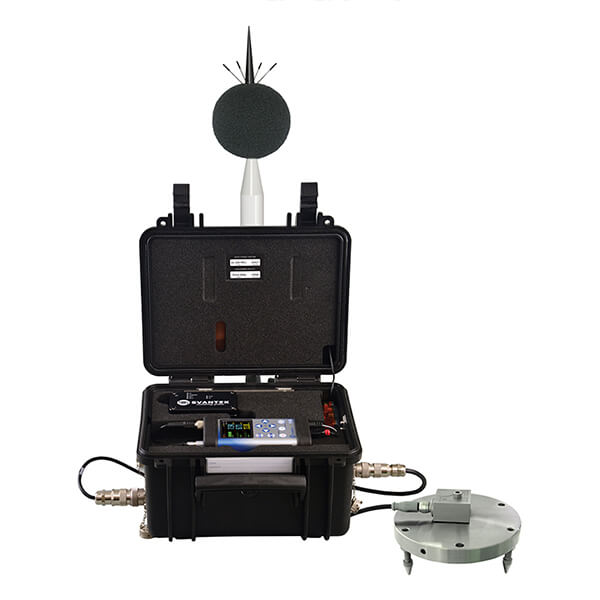

The new SV 258 PRO Monitoring Station is dedicated for building vibration measurement that use methods based on Peak Particle Velocity and Dominant Frequency. The measurement of human vibration in buildings is possible as the program allows simultaneous measurement of velocity and acceleration of vibrations with two independent steps of recording. In addition, it is possible to enrich the measurement with Class 1 sound results.
Discover the possibilities
More information
Description
Svantek SV 258 PRO Vibration and Noise Monitoring Station
The Svantek SV 258 PRO is a vibration and noise monitoring station dedicated to building vibration measurements that use methods based on Peak Particle Velocity and Dominant Frequency. The measurement of human vibration exposure in buildings is possible as the program allows simultaneous measurement of velocity and acceleration of vibrations with two independent steps of recording. In addition, it is possible to enrich the measurement with noise monitoring measurement data.Users can use predefined settings compatible with commonly used standards such as DIN 4150-3 or BS 7385-2 or configure a criterion curve based on FFT or 1/3 Octave analysis by local standards. The 1/3 octave method is also used for vibration measurements of sensitive equipment with VC curves.
Vibration and noise monitoring system
Vibration and noise monitoring with SV258 PRO is controlled remotely with a 4G modem that transmits measurement data to the SvanNET server where the user has access to current data, files with historical data and can also generate a measurement report. The system generates SMS and Email notifications as well as visual and audible alarms (optional alarm lamp). In addition to simple triggers from PPV or LEQ values, you can configure alarms from standard curves (e.g. DIN 4150-3) or custom curves based on FFT or 1/3 octaves for sensitive equipment. It is possible to move the criterion curve up or down the scale so that the alarm is generated earlier or later. The time and value of the alarm are saved together to the memory of the meter.The vibration time history in the form of WAV is stored for all three channels and is used for the verification of vibration sources. An accurate post-analysis of the frequency content of the signal is available in the SvanPC ++ program.
For more information: Svantek SV 258 PRO
Documents
Svantek SV 258 PRO Vibration and Noise Monitoring Station
Svantek SV 258 PRO DatasheetOptions
Svantek SV 258 PRO Vibration and Noise Monitoring Station
|
SV208A - Sound measurements set SV208A - Sound measurements set (MK 255 microphone, SV 12L Preamplifier, SA 277 outdoor microphone kit, SA 270D, SC 277 cable, case) |
|
SP272/5 - Alarm lamp and buzzer Alarm lamp and buzzer with cable 5 meters long to SV 27x stations |
|
SB 271 - Solar panel for SV 27x and SV 258 Solar panel for SV 27x and SV 258 |
