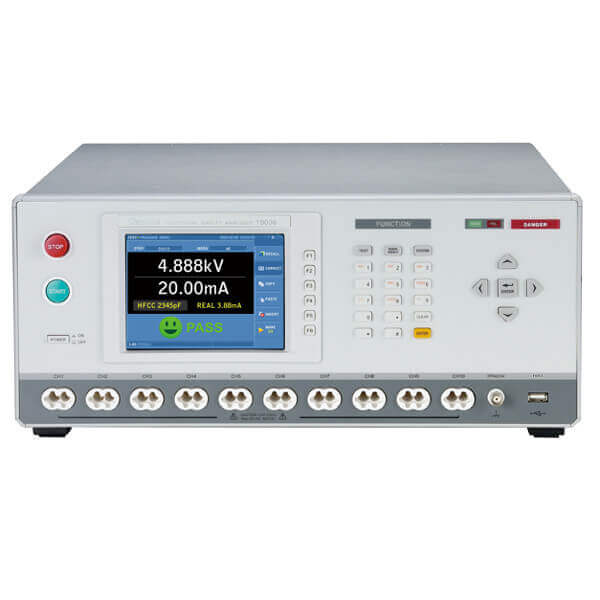

Chroma 19036 Wound Component EST Analyzer
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- 5 in 1 (10 channels) composite analyzer(ACWV / DCWV/ IR / Impulse / DCR)
- Hi-pot test- 5kVac / 6kVdc- HSCC( High Speed Contact Check)- 500 VA output
- Insulation Resistance test- 5kV Max.
- Impulse Winding Test (IWT)- 6kV impulse voltage- High sampling rate (200MHz)
- DCR measurement- 4-wire DCR measurement- △ / Y motor winding calculation
- Support max. 40 channels scanning test
- English, Traditional Chinese and Simplified Chinese User Interface
- USB waveform storage& Hard copy function
- Graphic color display
- Standard LAN,USB,RS232 interface
- GFI (Ground Fault Interrupt) for body protection
%20composite%20analyzer(ACWV%20/%20DCWV/%20IR%20/%20Impulse%20/%20DCR)%20%09Hi-pot%20test-%205kVac%20/%206kVdc-%20HSCC(%20High%20Speed%20Contact%20Check)-%20500%20VA%20output%20%09Insulation%20Resistance%20test-%205kV%20Max.%20%09Impulse...
){kind=link}
Discover the possibilities
More information
Description
Chroma 19036 Wound Component EST Analyzer
Chroma 19036 is the industry's first Wound Component Electrical Safety Test (EST) Analyzer that combines the functions of impulse test, hipot, insulation resistance and DC resistance measurements. It has 5kVac/ 6kVdc high voltage output, 5kV insulation resistance, 6kV layer short impulse voltage and 4-wire DC resistance measurement that can comply with the wound components test demands by providing maximum 10 channels output for multichannel scanning tests to save time and labor costs.The test items for wound components include AC/ DC hipot test, IR test, IWT (Impulse Winding Test) and DCR (DC Resistance). Chroma integrates the above tests into 19036 Wound Component EST Analyzer that can perform safety tests on wound components like motors, transformers and solenoid valves to verify their quality.
Poor insulation of coil often causes layer short, cross-line short or pin short during usage, and the reason could be initial design error, poor fabrication process or bad insulation material. Thus, to add layer short test in the electrical safety test manufacturing process can complete the scanning test for multiple windings at once to increase the quality of wound components.
Combining the layer shor t testing function, the 19036 has 6kV impulse voltage with area, differential area, Flutter and Laplacian judgments to supply effective measures for inspecting poor coil insulation.
The 19036 is equipped with a patented 4-wire DC resistance test that has both Drive and Sense in compliance with withstanding specification to provide 10 channels of 4-wire DC resistance test functions. Up to 40ch of scanning test can be conducted when the 19036 is configured with 16ch scan boxs.
The 19036 also has HSCC functions to scan multiple windings rapidly for normal connection. It can solve the test fail problems caused by bad contact of cabling or test fixture.
The motor standard such as UL 1004-1 requires high power safety tester. Chroma 19036 with the capability of outputting & measuring AC100mA/DC 20mA is suitable for testing large leakage current or big electrical safety equipment. Chroma 19036 as a comprehensive tester integrated with high power hipot test and other safety tests can bring the maximum benefit to the production line as well as to quality assurance. Its 500VA design is also compliant with the output power requirements of EC/UL.
Documents
Chroma 19036 Wound Component EST Analyzer
Wound Component EST Analyzer Model 19036 data sheetOptions
Chroma 19036 Wound Component EST Analyzer
| A190359 | 16ch HV External Scanning BOX |
| A190360 | 19' Rack Mount Kit |
| A190362 | 16ch 4-wire HV External Scanning Box |
| A190363 | 4-wire Test Cable with Clip |
| A190364 | 4-wire Test Cable with bare wire (1.5m) |
| A190365 | 4-wire Test Cable with bare wire (3m) |
