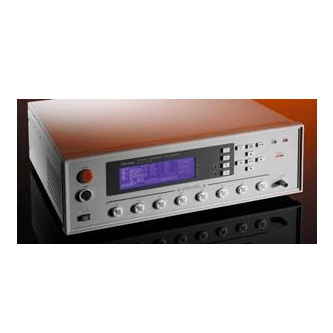

Chroma 19035 Wound Component EST Tester
FUNCTIONS- 5KVAC & 6KV DC Hipot Test
- 0.1MΩ~50GΩ /5kV IR Test
- 50mΩ~100kΩ DCR Test
- 8 Channel Scanner
Wound Component Testing Solution
The quality verification test items for Wound Component consist of AC/DC Hipot tests, Insulation Resistance (IR) test and Impulse Winding test. Chroma integrates above tests into 19035 Wound Component EST Scanner series performing safety tests for motor, transformer, heater related wound products. The wound component manufacturers in quality verification testing not only have reliable quality but also control product quality efficiently.
The 19035 Series support 5kVac/6kVdc high voltage output to conform with withstand test requirement for Wound Component, its maximum output current can up to 30mA. Insulation Resistance (IR) test measurement range is 1MΩ to 50G Ω and voltage output can up to 5kV. DCR can measure basic specification for Wound Component and also check the connection before testing safety withstand.
The 19035 Series also include powerful functions in Flashover detection and Open/ Short Check (OSC) as well as programmable voltage, time parameters, etc. for various DUTs features to promote testing reliability and product quality.
Applications
The 19035 is a comprehensive safety tester designed for motor, transformer, heater related wound component requirements. Most of wound components are equipped with multiple winding such as 3-phase motor, dual winding transformer, etc. Moreover, the wound component needs to use Impulse Winding Tester for high voltage winding to check insulation no good of winding device.
The 19035 provides OSC and DCR functions to verify if bad contact or short circuit happened during test procedure. It solves the Wound Components of motor, transformer, etc occurred contact problems, so that test quality greatly enhanced and the life of test device prolonged.
- Motor, Fan : 19035-M
- Electric Heater Tube : 19035-M
- Transformer : 19035
- Switch, Wire : 19035
- Camera Micro Motor, Coil : 19035-S
