ShockLine™ 4-Port Performance VNA MS46524BApplications:Differential DevicesAutomotiveMobileGeneral PurposeSystem Integration ApplicationsSimple Active ApplicationsWireless Power Transfer ApplicationsOptical to Electrical & Electronical to Optical Applications
Discover the possibilities
More information
Description

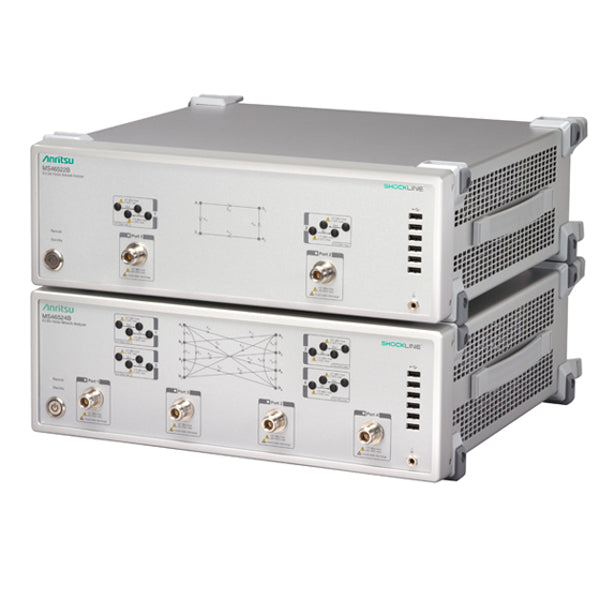

Anritsu MS46524B 4-port Performance VNA
- Simple signal integrity testing of passive multiport and differential devices
- Advanced time domain option provides tools for signal integrity (SI) analysis Industry leading dynamic range enables measurement of very low reflection artifacts
- Excellent corrected directivity minimizes measurement uncertainty
- SmartCal auto calibration unit reduces calibration and setup time
- Time domain with time gating option enables TDR-like measurements
- Modern LAN interface for remote control is faster than GPIB
- A common GUI and SCPI interface within the Shockline Family
- The compact 3U high chassis allows for the efficient use of rack space
- Access loops and Bias Tee option allows maximum custom test setups
Documents
Anritsu MS46524B 4-port Performance VNA
Anritsu MS46524B DatabladOptions
Anritsu MS46524B 4-port Performance VNA
MS46524B-010 50 kHz — 8.5 GHz MS46524B-020 50 kHz — 20 GHz MS46524B-040 50 kHz — 43.5 GHz MS46524B-001 Rack mount, adds handles and removes feet for shelf-mounting into a 19 in. universal rack MS46524B-002 Time domain with time gating MS46524B-022 Advanced time domain MS46524B-051 Direct Access Loops (Source 1, 2, 3, 4 and b1, b2, b3, b4) (For MS46524B units with Option 10 only) MS46524B-061 Bias Tees (Port 1, 2, 3, and 4) (For MS46524B units with Option 10 only)Video
Anritsu MS46524B 4-port Performance VNA
- Simple signal integrity testing of passive multiport and differential devices
- Advanced time domain option provides tools for signal integrity (SI) analysis Industry leading dynamic range enables measurement of very low reflection artifacts
- Excellent corrected directivity minimizes measurement uncertainty
- SmartCal auto calibration unit reduces calibration and setup time
- Time domain with time gating option enables TDR-like measurements
- Modern LAN interface for remote control is faster than GPIB
- A common GUI and SCPI interface within the Shockline Family
- The compact 3U high chassis allows for the efficient use of rack space
- Access loops and Bias Tee option allows maximum custom test setups
