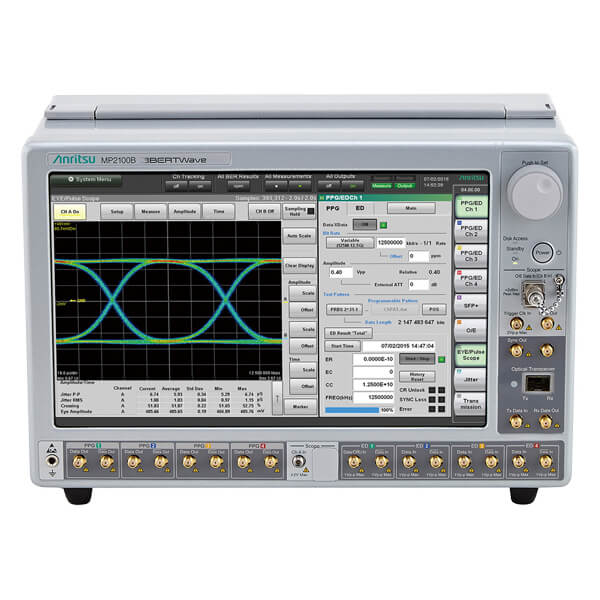

Anritsu MP2100B Bit Error Rate Tester
The BERTWave MP2100B is an all-in-one bit error rate test set with built-in BERT and sampling oscilloscope supporting evaluation of optical modules, including BER measurements, Eye Mask tests, Eye pattern analyses, etc.The BERTWave MP2100B BERT function supports BER measurements at speeds ranging from 125 Mbit/s to 12.5 Gbit/s; its built-in 4ch BERT option makes it easy to configure test systems for multichannel modules, such as QSFP+ and AOC. Further, in addition to supporting BER measurements for differential signals, it also supports Eye Mask and Eye pattern Measurements.
The BERTWave MP2100B sampling oscilloscope has a bandwidth of 25 GHz (typ.) for electrical interfaces and a bandwidth of 9 GHz (typ.) for optical interfaces. In addition, up to six optional Bessel filters can be built-in for measuring optical signals using the scope. Using these filters, MP2100B supports extinction ratio measurements, Eye Mask tests and Eye pattern analyses for various applications. Further, the scope has a Fast Sampling Mode to secure the fastest high-speed measurements; sampling speeds of up to 150 ksample/s are supported by Fast Sampling Mode, which is 1.5 times faster than legacy models and supports time-saving high-speed Eye Mask tests and Eye pattern analyses.
Documents
Anritsu MP2100B
Anritsu MP2100B DatasheetOptions
Anritsu MP2100B MP2100B BERTWave MP2100B-011 1CH BERT MP2100B-012 2CH BERT MP2100B-014 4CH BERT MP2100B-021 Dual Electrical Scope MP2100B-023 Optical and Single-ended Electrical Scope MP2100B-030 GPIB MP2100B-037 FC Connector MP2100B-040 SC Connector MP2100B-051 SFP+ Slot MP2100B-053 Clock Recovery (External Input) MP2100B-054 Clock Recovery (Optical Data) MP2100B-055 Clock Recovery (with BER Measurement) MP2100B-063 High Rate Filter Bank MP2100B-065 Low Rate Filter Bank MP2100B-069 Multi Rate Filter Bank MP2100B-070 LPF for 156M (L) MP2100B-071 LPF for 622M (L) MP2100B-072 LPF for 1.0G (L) MP2100B-073 LPF for 1.2G (L) MP2100B-075 LPF for 2.5G (L) MP2100B-076 LPF for 2.1G (H) MP2100B-078 LPF for 2.6G (H) MP2100B-079 LPF for 3.1G (H) MP2100B-080 LPF for 4.2G (H) MP2100B-081 LPF for 5.0G (H) MP2100B-082 LPF for 6.2G (H) MP2100B-086 LPF for Multi 10G (8.5G to 11.3G) (H) MP2100B-087 Filter Bank Set (622M/1.2G/2.5G/4.2G/6.2G/Multi 10G) MP2100B-088 Filter Bank Set (4.2G/5.0G/6.2G/ Multi 10G) MP2100B-089 Filter Bank Set (156M/622M/1.2G/2.5G) MP2100B-092 PPG/ED Bit Rate Extension for 125M to 12.5G
