Anritsu MP1900A Signal Quality Analyzer-R

Sale price0,00 DKK Price on quotation
Available

Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk

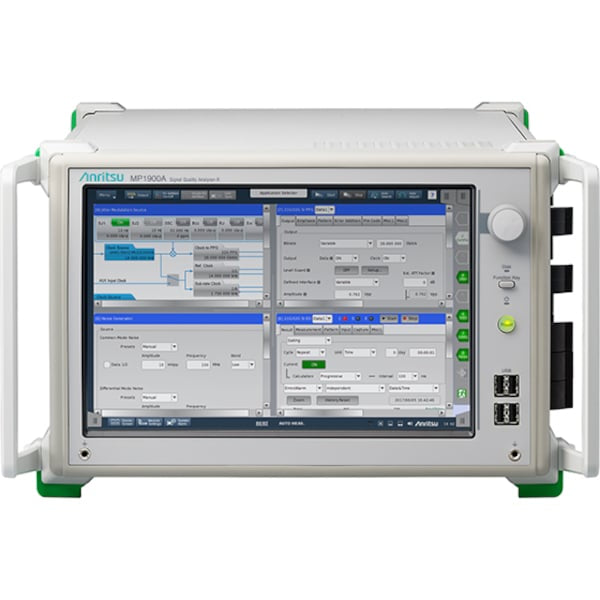

  • LCD: 12.1-inch, WXGA 1280 x 800
  • Power: 100V(ac) to 120V(ac)/200V(ac) to 240 V(ac) 50 Hz to60 Hz

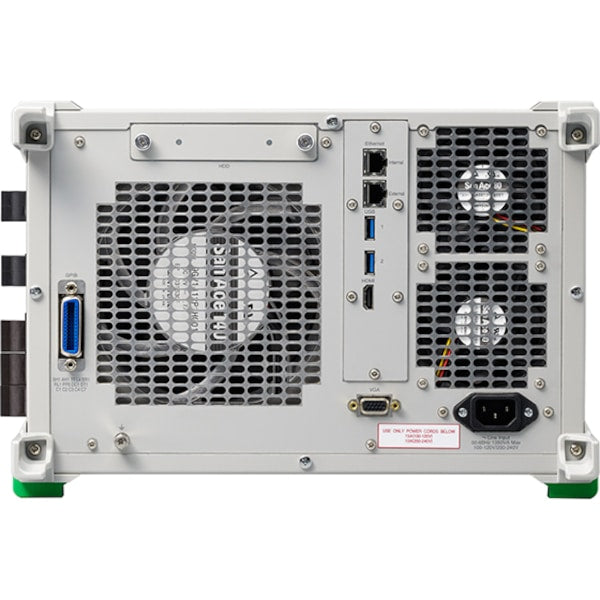

  • External Peripheral I/F: USB x6, VGA x1, HDMI x1
  • Remote Interface: GPIB, LAN
  • Power Consumption: 1350 VA max.
  • Dimensions/Mass: 340 (W) x 222.5 (H) x 451 (D) mm/20 kg max. (excluding modules)

Discover the possibilities

More information

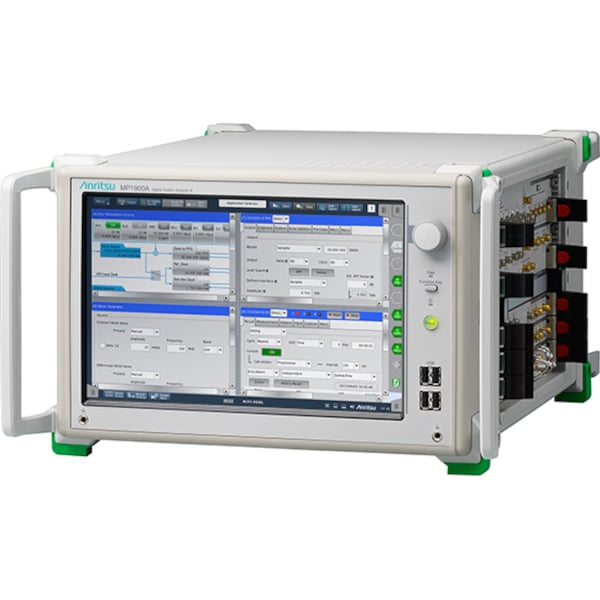

Anritsu MP1900A Signal Quality Analyzer-R

The Anritsu MP1900A is an 8-slot modular, high-performance BERT supporting all-in-one Physical layer measurements of both high-speed network interfaces as NRZ and PAM4, and PCI Express/USB, bus interfaces

To cope with increasing data traffic caused by the widespread popularity of smartphones and mobile terminals, data-center network interfaces are being transitioned to the faster 200 GbE/400 GbE/800 GbE standards, while communications-equipment interconnects are adopting PCI Express Gen5 supporting faster speeds of 32 Gbit/s; multi-channel technologies are also being deployed.

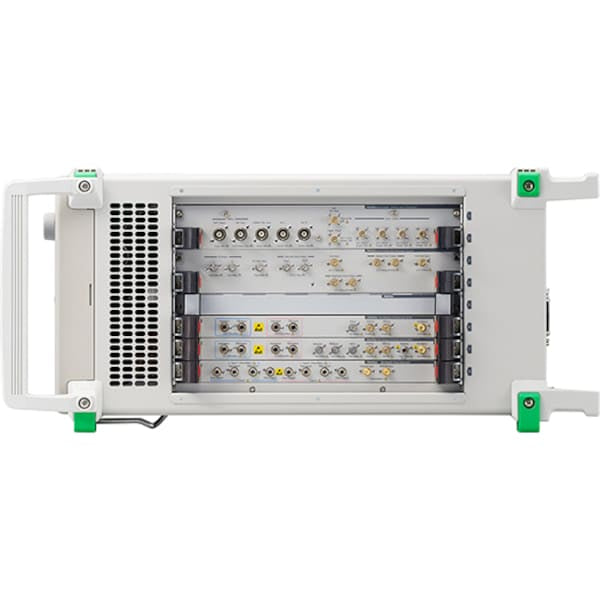

Anritsu’s Signal Quality Analyzer-R MP1900A series is a high-performance BERT with 8 slots for modules, such as PPG, ED and Jitter/Noise Generator, to expand measurement applications supporting signal integrity analyses of ever-faster devices. In addition to Physical layer measurement functions for broadband network interfaces, the all-in-one MP1900A supports PCI Express bus, etc., interface measurements.

Target Applications
100 GbE/200 GbE/400 GbE/800 GbE, CEI-25G/28G/56G/112G, InfiniBand EDR/HDR, Fibre Channel, PCI Express Gen1/2/3/4/5, Thunderbolt 1/2/3, USB3.2/4 Type C, SAS-3/-4, DP1.4, Optical module, SERDES, AOC, High-speed Interconnect

Due to the explosive growth of data traffic resulting from the popularity of smartphones and mobile terminals, network interfaces are transitioning to faster 200/400 GbE standards, and PCI bus interface speeds now exceed 10G. In addition, the equipment and chipsets using these interfaces support multi-channels and multi-protocols. The MP1900A series is a high-performance BERT with excellent expandability for supporting Physical layer evaluations of these high-speed interfaces. The all-in-one design is ideal for early stage R&D evaluations of all interfaces covering next-generation Ethernet networks to bus interconnects

Anritsu MP1900A

Features

PAM4 Test Solution

  • 512 Gbit/s max. transmission capacity
  • PAM4 PPG/ED (MU196020A/MU196040A) Baud rate of 2.4 to 64.2 Gbaud*1 Multichannel Scalability 4ch PAM4/NRZ  NEW High-speed Tr/Tf of 8.5 ps (20 to 80%) Low Intrinsic Jitter output of random Jitter 170 fs rms (typ.) Low noise and low distortion high-quality data output 4Tap Emphasis (20-dB Range) ISI adjustment function  NEW FEC pattern generation  NEW Stressed margin BER < E-12*2 Built-in Clock Recovery PAM4 pattern editor and symbol error measurement
  • Jitter Addition, Jitter Tolerance measurement functions (SJ/RJ/BUJ/SSC)
  • Voltage Noise Addition function (Common/Differential/White Noise)
  • Jitter Tolerance measurement using DUT BER counter function  NEW

*1: Future support for ED (Over 32.1G)
*2: At PAM4 Stressed waveform input refer to CEI

PAM4 Solution (Max. 64 Gbaud at 1CH)

Anritsu MP1900A

High-Speed Serial BUS Test Solution (PCI Express, USB, Thunderbolt)

  • 512 Gbit/s max. transmission capacity, one main frame expandable to 16ch (filling 8 slots with 32 Gbit/s 2 ch PPG)
  • All-in-one support for both high-speed Ethernet and PCI Express interface tests
  • New wideband 32 Gbit/s SI PPG/ED (MU195020A/MU195040A) - Bit rate of 2.4 Gbit/s to 32.1 Gbit/s - NRZ/PAM4 Support - 10Tap Emphasis - Variable ISI function - Multi-band CTLE (8 Gbit/s, 16 Gbit/s, 28 Gbit/s bandwidths) - Low Intrinsic Jitter output of random Jitter 115 fs rms (typ.) - High-sensitivity Data input of 15 mV typ. (EYE Height) - 1ch/2ch Selection
  • PCI Express Link Training, LTSSM analysis (using MU195020A/MU195040A/MX183000A-PL021)
  • USB Express Link Training, LTSSM analysis (using MU195020A/MU195040A/MX183000A-PL022)
  • Jitter Addition, Jitter Tolerance measurement functions (SJ/RJ/BUJ/SSC, using MU181500B/MX183000A-PL001)
  • Voltage Noise Addition function (Common/Differential/White Noise, using MU195020A/MU195050A)

NRZ Solution (Max. 32 Gbit/s at 1ch)
