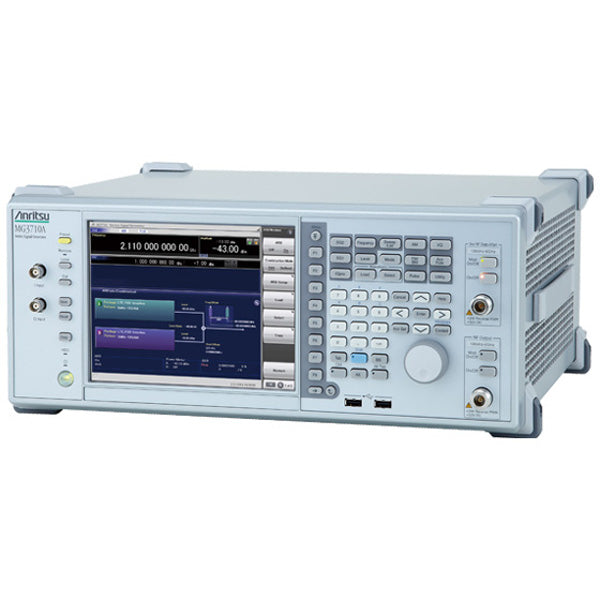

Anritsu MG3710A 6 GHz Vector Signal Generator
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Vector Signal Generator supporting frequencies of 100 kHz to 2.7/4/6 GHz
- ACLR: -71 dBc (W-CDMA, Test-Model 1, 64DPCH, ≤+5 dBm)
- Output level +23 dBm (CW, 400 MHz to 3 GHz)
- Switching Time: <600 µs (List/Sweep mode)
- Built-in wideband (160 MHz/120 MHz) baseband signal generator
- Dual RF (Optional) provides two independent RF outputs
- Dual Waveform Memory (Optional) enables two independently modulated signals per RF Output
- Generate and output modulation signals of various communication systems such as 5G NR (sub-6 GHz), LTE-Advanced TDD / FDD (Optional)
%0A%20%09Output%20level%20+23%20dBm%20(CW,%20400%20MHz%20to%203%20GHz)%0A%20%09Switching%20Time:%20%26...
){kind=link}
Discover the possibilities
More information
Description
Anritsu MG3710A 6 GHz Vector Signal Generator
The Vector Signal Generator MG3710A is a best-of-class, multi-function, signal generator with excellent RF and baseband performance. The MG3710A features wideband vector modulation and offers built-in baseband waveform generation with large-capacity memory to ensure maximum versatility. It supports all key mobile communications and wireless LAN standards, and it also has the exceptional performance required for emerging and proprietary wireless communications technologies. Dual RF and Dual Waveform options enable a single unit to output up to four independently modulated signals.
The Anritsu MG3710A makes it easy to implement complex test scenarios that would normally require multiple synchronized signal generators, such as:
- Wanted + Interference Signals for Receiver Blocking Testing
- Wanted + Two CW Tones for Receiver Intermodulation Testing
- Wanted + Delayed Signals for Multipath Testing
- Multiple Wanted Signals for MIMO Testing
- Multiple Wanted Signals for LTE-Advanced Carrier Aggregation Testing'
For more information: Anritsu
Documents
Anritsu MG3710A Anritsu MG3710A Datasheet
Options
Anritsu MG3710A MG3710A Vector Signal Generator MG3710A-032 1stRF 100 kHz to 2.7 GHz MG3710A-034 1stRF 100 kHz to 4 GHz MG3710A-036 1stRF 100 kHz to 6 GHz MG3710A-062/162 2ndRF 100 kHz to 2.7 GHz MG3710A-064/164 2ndRF 100 kHz to 4 GHz MG3710A-066/166 2ndRF 100 kHz to 6 GHz MG3710A-001/101 Rubidium Reference Oscillator MG3710A-002/102 High Stability Reference Oscillator MG3710A-011/111 2ndary HDD MG3710A-017/117 Universal Input/Output MG3710A-021/121 BER Test Function MG3710A-029 OS Upgrade to Windows 7 MG3710A-313 Removable HDD MG3710A-018/118 Analog IQ Input/Output MG3710A-041/141 High Power Extension for 1stRF MG3710A-042/142 Low Power Extension for 1stRF MG3710A-043/143 Reverse Power Protection for 1stRF MG3710A-045/145 ARB Memory Upgrade 256 Msample for 1stRF MG3710A-046/146 ARB Memory Upgrade 1024 Msample for 1stRF MG3710A-048/148 Combination of Baseband Signal for 1stRF MG3710A-049/149 AWGN for 1stRF MG3710A-050/150 Additional Analog Modulation Input for 1st RF MG3710A-071/171 High Power Extension for 2ndRF MG3710A-072/172 Low Power Extension for 2ndRF MG3710A-073/173 Reverse Power Protection for 2ndRF MG3710A-075/175 ARB Memory Upgrade 256 Msample for 2ndRF MG3710A-076/176 ARB Memory Upgrade 1024 Msample for 2ndRF MG3710A-078/178 Combination of Baseband Signal for 2ndRF MG3710A-079/179 AWGN for 2ndRF MG3710A-080/180 Additional Analog Modulation Input for 2nd RF MX370073A DFS Radar Pattern [For TELEC/FCC] MX370075A DFS (ETSI) Waveform Pattern [For ETSI] MX370084A ISDB-Tmm Waveform Pattern MX370101A HSDPA/HSUPA IQproducer MX370102A TDMA IQproducer MX370103A CDMA2000 1xEV-DO IQproducer MX370104A Multi-carrier IQproducer MX370105A Mobile WiMAX IQproducer MX370106A DVB-T/H IQproducer MX370107A Fading IQproducer MX370108A LTE IQproducer MX370108A-001 LTE-Advanced FDD Option [Requires MX370108A] MX370110A LTE TDD IQproducer MX370110A-001 LTE-Advanced TDD Option [Requires MX370110A] MX370111A WLAN IQproducer MX370111A-002 802.11ac (160 MHz) Option [Requires MX370111A] MX370112A TD-SCDMA IQproducer MG3710A-ES210 2 Years Extended Warranty Service MG3710A-ES310 3 Years Extended Warranty Service MG3710A-ES510 5 Years Extended Warranty Service
Video
Anritsu MG3710A 6 GHz Vector Signal Generator
The Vector Signal Generator MG3710A is a best-of-class, multi-function, signal generator with excellent RF and baseband performance. The MG3710A features wideband vector modulation and offers built-in baseband waveform generation with large-capacity memory to ensure maximum versatility. It supports all key mobile communications and wireless LAN standards, and it also has the exceptional performance required for emerging and proprietary wireless communications technologies. Dual RF and Dual Waveform options enable a single unit to output up to four independently modulated signals.
The Anritsu MG3710A makes it easy to implement complex test scenarios that would normally require multiple synchronized signal generators, such as:
- Wanted + Interference Signals for Receiver Blocking Testing
- Wanted + Two CW Tones for Receiver Intermodulation Testing
- Wanted + Delayed Signals for Multipath Testing
- Multiple Wanted Signals for MIMO Testing
- Multiple Wanted Signals for LTE-Advanced Carrier Aggregation Testing'
For more information: Anritsu
Anritsu MG3710A Anritsu MG3710A Datasheet
Anritsu MG3710A MG3710A Vector Signal Generator MG3710A-032 1stRF 100 kHz to 2.7 GHz MG3710A-034 1stRF 100 kHz to 4 GHz MG3710A-036 1stRF 100 kHz to 6 GHz MG3710A-062/162 2ndRF 100 kHz to 2.7 GHz MG3710A-064/164 2ndRF 100 kHz to 4 GHz MG3710A-066/166 2ndRF 100 kHz to 6 GHz MG3710A-001/101 Rubidium Reference Oscillator MG3710A-002/102 High Stability Reference Oscillator MG3710A-011/111 2ndary HDD MG3710A-017/117 Universal Input/Output MG3710A-021/121 BER Test Function MG3710A-029 OS Upgrade to Windows 7 MG3710A-313 Removable HDD MG3710A-018/118 Analog IQ Input/Output MG3710A-041/141 High Power Extension for 1stRF MG3710A-042/142 Low Power Extension for 1stRF MG3710A-043/143 Reverse Power Protection for 1stRF MG3710A-045/145 ARB Memory Upgrade 256 Msample for 1stRF MG3710A-046/146 ARB Memory Upgrade 1024 Msample for 1stRF MG3710A-048/148 Combination of Baseband Signal for 1stRF MG3710A-049/149 AWGN for 1stRF MG3710A-050/150 Additional Analog Modulation Input for 1st RF MG3710A-071/171 High Power Extension for 2ndRF MG3710A-072/172 Low Power Extension for 2ndRF MG3710A-073/173 Reverse Power Protection for 2ndRF MG3710A-075/175 ARB Memory Upgrade 256 Msample for 2ndRF MG3710A-076/176 ARB Memory Upgrade 1024 Msample for 2ndRF MG3710A-078/178 Combination of Baseband Signal for 2ndRF MG3710A-079/179 AWGN for 2ndRF MG3710A-080/180 Additional Analog Modulation Input for 2nd RF MX370073A DFS Radar Pattern [For TELEC/FCC] MX370075A DFS (ETSI) Waveform Pattern [For ETSI] MX370084A ISDB-Tmm Waveform Pattern MX370101A HSDPA/HSUPA IQproducer MX370102A TDMA IQproducer MX370103A CDMA2000 1xEV-DO IQproducer MX370104A Multi-carrier IQproducer MX370105A Mobile WiMAX IQproducer MX370106A DVB-T/H IQproducer MX370107A Fading IQproducer MX370108A LTE IQproducer MX370108A-001 LTE-Advanced FDD Option [Requires MX370108A] MX370110A LTE TDD IQproducer MX370110A-001 LTE-Advanced TDD Option [Requires MX370110A] MX370111A WLAN IQproducer MX370111A-002 802.11ac (160 MHz) Option [Requires MX370111A] MX370112A TD-SCDMA IQproducer MG3710A-ES210 2 Years Extended Warranty Service MG3710A-ES310 3 Years Extended Warranty Service MG3710A-ES510 5 Years Extended Warranty Service
