Anritsu MA24105A Power Sensor
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Broad Frequency Range (350 MHz to 4 GHz)
- Covers all major cellular and communication bands, such as WLL, GSM/EDGE, CDMA/EV-DO, WCDMA/HSDPA, WiMAX and TD-SCDMA
- Forward and Reverse Measurements
- Widest Dynamic Range Inline Power Sensor in its Class
- True-RMS Measurements to 150 W
- Standalone, Low Cost, Plug and Play Device
- Ideal for high crest factor signal measurements
%0A%20%09Covers%20all%20major%20cellular%20and%20communication%20bands,%20such%20as%20WLL,%20GSM/EDGE,%20CDMA/EV-DO,%20WCDMA/HSDPA,%20WiMAX%20and%20TD-SCDMA%0A%20%09Forward%20and%20Reverse%20Measurement...
){kind=link}
Discover the possibilities
More information
Description
Anritsu MA24105A Power Sensor

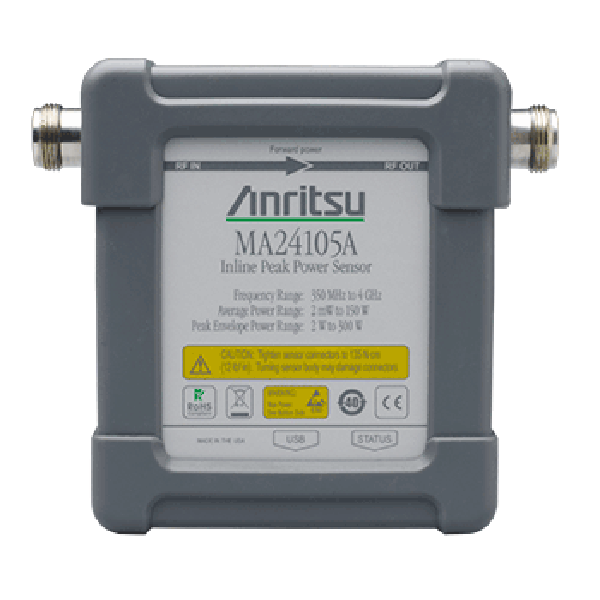

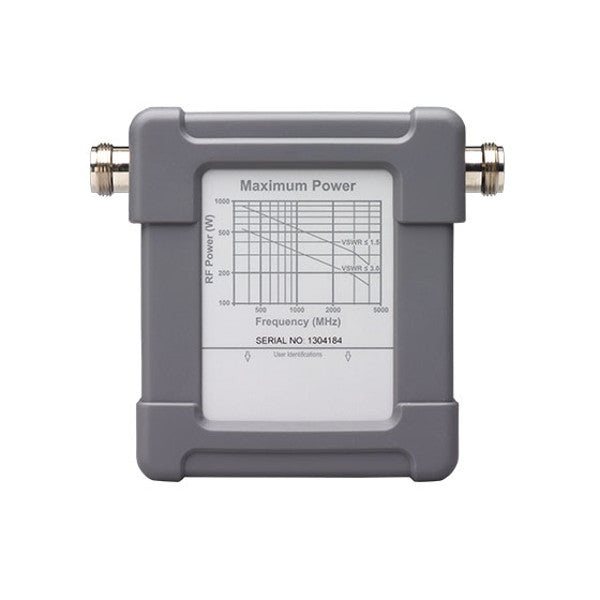

The Anritsu MA24105A Inline Peak Power Sensor is designed to take accurate average power measurements over 2mW to 150 W, from 350 MHz to 4GHz.The sensor employs a "dual path" architecture that enables True-RMS measurements over the entire frequency and dynamic range allowing users to measure CW, multi-tone and digitally modulated signals such as GSM/EDGE, CDMA/EV-DO, WCDMA/HSDPA, WiMAX, and TD-SCDMA.
The forward direction path also includes a 4 MHz bandwidth channel that has peak and comparator/integrator circuits that add measurement functions such as PEP power, crest factor, CCDF, and burst average power.
Another detection circuit on the reverse direction adds reverse power measurement capabilities including reverse power, reflection coefficient, return-loss, and SWR. The presence of a micro-controller along with signal conditioning circuitry, ADC, and power supply in the sensor makes it a complete miniature power meter.
Operation with PC

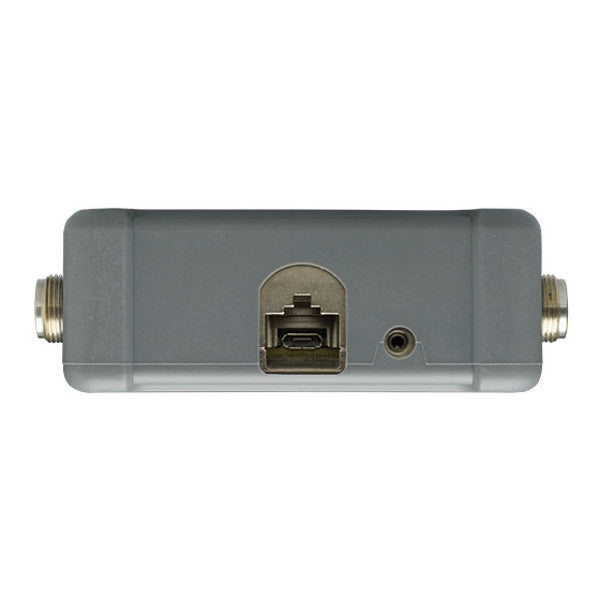

The power sensor can be used with a PC running Microsoft Windows® via USB.It comes with PowerXpert™ application (version 2.1 or greater) for data display, analysis, and sensor control. The software provides a front panel display making the PC appear like a traditional power meter.
The application has abundant features like data logging, power versus time graph, and offset table that enable quick and accurate measurements.
For more information: Anritsu
Documents
Anritsu MA24105A Power Sensor
Anritsu MA24105A DatasheetOptions
Video
Anritsu MA24105A Power Sensor
The Anritsu MA24105A Inline Peak Power Sensor is designed to take accurate average power measurements over 2mW to 150 W, from 350 MHz to 4GHz.The sensor employs a "dual path" architecture that enables True-RMS measurements over the entire frequency and dynamic range allowing users to measure CW, multi-tone and digitally modulated signals such as GSM/EDGE, CDMA/EV-DO, WCDMA/HSDPA, WiMAX, and TD-SCDMA.
The forward direction path also includes a 4 MHz bandwidth channel that has peak and comparator/integrator circuits that add measurement functions such as PEP power, crest factor, CCDF, and burst average power.
Another detection circuit on the reverse direction adds reverse power measurement capabilities including reverse power, reflection coefficient, return-loss, and SWR. The presence of a micro-controller along with signal conditioning circuitry, ADC, and power supply in the sensor makes it a complete miniature power meter.
Operation with PC
The power sensor can be used with a PC running Microsoft Windows® via USB.It comes with PowerXpert™ application (version 2.1 or greater) for data display, analysis, and sensor control. The software provides a front panel display making the PC appear like a traditional power meter.
The application has abundant features like data logging, power versus time graph, and offset table that enable quick and accurate measurements.
For more information: Anritsu
