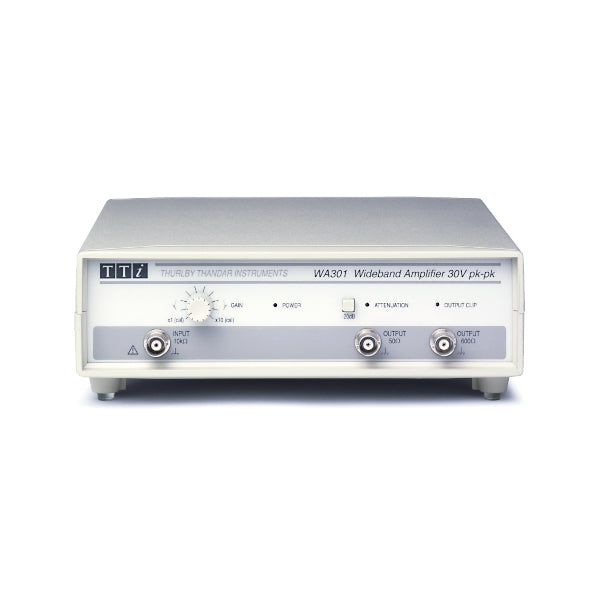

Aim-TTi WA301 Wideband Amplifier
2.450,00 incl. VAT
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Extends the output range of function generators
- 30 Volts peak to peak output swing
- DC to 1MHz bandwidth
- High impedance input, 0dB to +20dB gain
- 50 Ohm and 600 Ohm outputs
- 20dB switchable output attenuator
- Fully protected output
Discover the possibilities
More information
Description
Aim-TTi WA301 Wideband Amplifier
The Aim-TTi WA301 is a Waveform Amplifier with 30 volts pk-pkGENERAL DESCRIPTION
The WA301 is a DC to 1MHz amplifier with a maximum output (e.m.f.) of 30 volts peak to peak from a 50Ωsource impedance. A 600Ω output is also provided.The unit can provide up to 15 volts peak to peak into a 50Ω load and can drive up to 300mA peak into a low impedance or short circuit.
Fully variable gain between x1 and x10 is provided by a rotary vernier with calibrated end stops. A -20dB output attenuator is also incorporated.
An "output clip" LED is provided to warn if the output amplitude exceeds ±15V.
APPLICATIONS
Most function generators have a maximum open-circuit output voltage of 20V peak to peak. The WA301 enables this to be boosted to 30V peak to peak.Commonly the WA301 will be used as a slave to a function generator with the gain set to x10. Thus an output of 3V pk-pk at the function generator would give rise to an output of 30V pk-pk from the WA301.
Alternatively the variable gain facility might be used to provide an adjustable output level from a fixed level source.
An example of this is a buffer amplifier to a waveform DAC such as the VIPS20 from the TTi virtual instrument module range. The WA301 can provide a waveform amplitude variable between 300mV and 30V pk-pk from 50Ω whilst maintaining full 12-bit resolution. Lower output levels could be generated by sacrificing resolution.
For more information: Aim-TTi
