HIKMicro G61 Handheld Thermography Camera

Sale price56.250,00 kr
70.312,50 incl. VAT

Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk

  • IR Resolution - 640 x 480 (307,200 pixels)
  • SuperIR - 1280 x 960 (1,228,800 pixels)
  • NETD - < 35 mK (@ 25 °C, F#=1.0)
  • Image Frequency - 50 Hz
  • Detector Pitch - 17 μm
  • Spectral Range - 7.5 to 14 μm
  • Focal Length - 25 mm
  • F-number - F 1.0
  • Field of View (FOV) - 25° × 19°
  • Spatial Resolution (IFOV) - 0.68 mrad

Discover the possibilities

More information

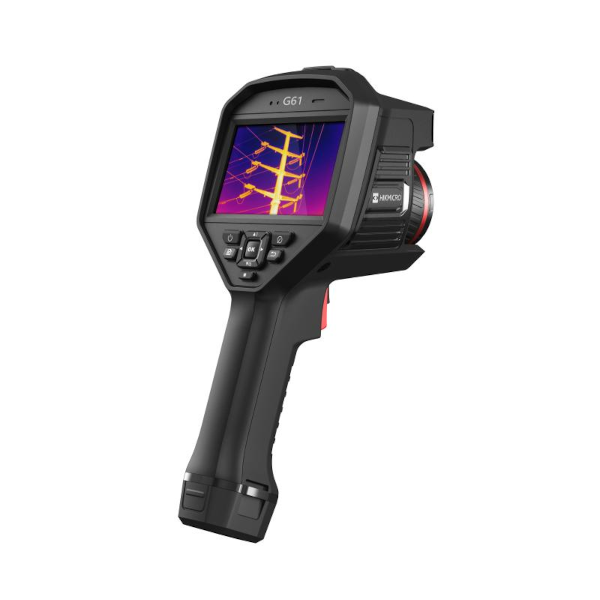

HIKMicro G61 Handheld Thermography Camera

HIKMICRO G61 Handheld Thermal Camera is specially designed for temperature measurement. It’s equipped with a 640 × 480 resolution thermal detector. It helps the staff to quickly find the high-temperature targets in the environment. Meanwhile, it provides assistance with decisions and ensures safety. The device is mainly applied to various industries, such as Building, Electrical utilities, oil and gas industry, etc.

Up to 640x480 @35mK NETD

A highly sensitive VOx detector with 640 x 480 (307,200 pixels)IR resolution, provides a distinct thermal vision of the target.

5 Quick Focus Modes

Support for 5 focus modes (Laser Assisted AF, Continuous AF, AF, Manual Focus, Touch AF) and a fast focus speed of 2 seconds help save time by providing sharper images for more accurate temperature measurements.

3 Add-on Lenses

3 Add-on Lens 0.5X, 2X, and 3.3X are available for choice. Different teleconverter gives different Field Of View, which gives more choices when facing different scenarios.

Up to 2000°C Temperature Range

With a measurement range of up to 2000°C (3992°F), it can handle industrial furnace applications, refractory, and inspecting tools/fixtures in metal smelting at these extreme temperatures. (*G41H/G61H only)

Embedded Laser Distance Meter

An integrated laser distance meter provides accurate distance and area measurement from long distances, more convenient in setting parameters and generating the report.

5 Image Mode

Thermal, Fusion, PIP, Blending and Optical modes to suit your preferred.

Complete Image Annotations

In addition to supporting voice, text and QR Code Scan annotations, GPS and compass functions automatically add location and direction information to the image, helping to improve inspection efficiency and productivity.

Interchangeable Battery System

Includes 3 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 12 hours of operation.  You can stay powered up for even the longest inspections.

Radiometric Video Analysis

Supports recording of radiometric video in-camera SD card storage, including all temperature data, for post analysis on PC software. Works seamlessly with HIKMICRO Analyzer software for intuitive viewing, advanced analysis, and processing of thermal data.

What‘s in the Box
