VeEX PX92 Multi-Gigabit Internet Services, Ethernet Speed & Wi-Fi Test Solution

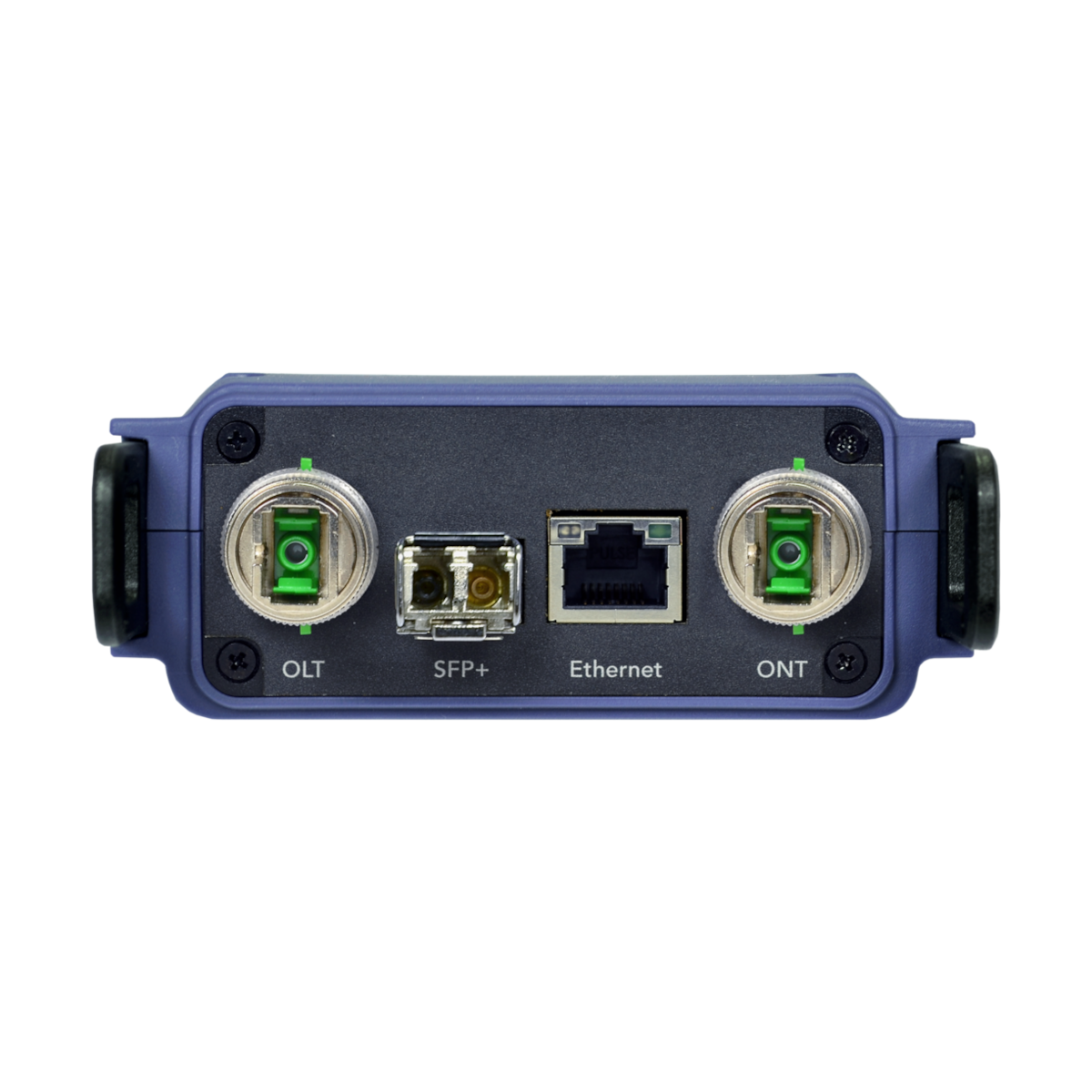

The PX92 and PX92T are PON analyzers with RJ45 and SFP+ Ethernet interfaces for Layer 4+ testing. PX92 supports in-service activation with pass-through power levels and OLT/ONT IDs, while PX92T focuses on construction-phase testing with dual 1490/1577 PON meters. Both models offer PON ONT emulation, Quality of Experience (QoE) validation using Speed Test and V-PERF at speeds up to 10 Gbps, as well as Wi-Fi performance verification.

Highlights

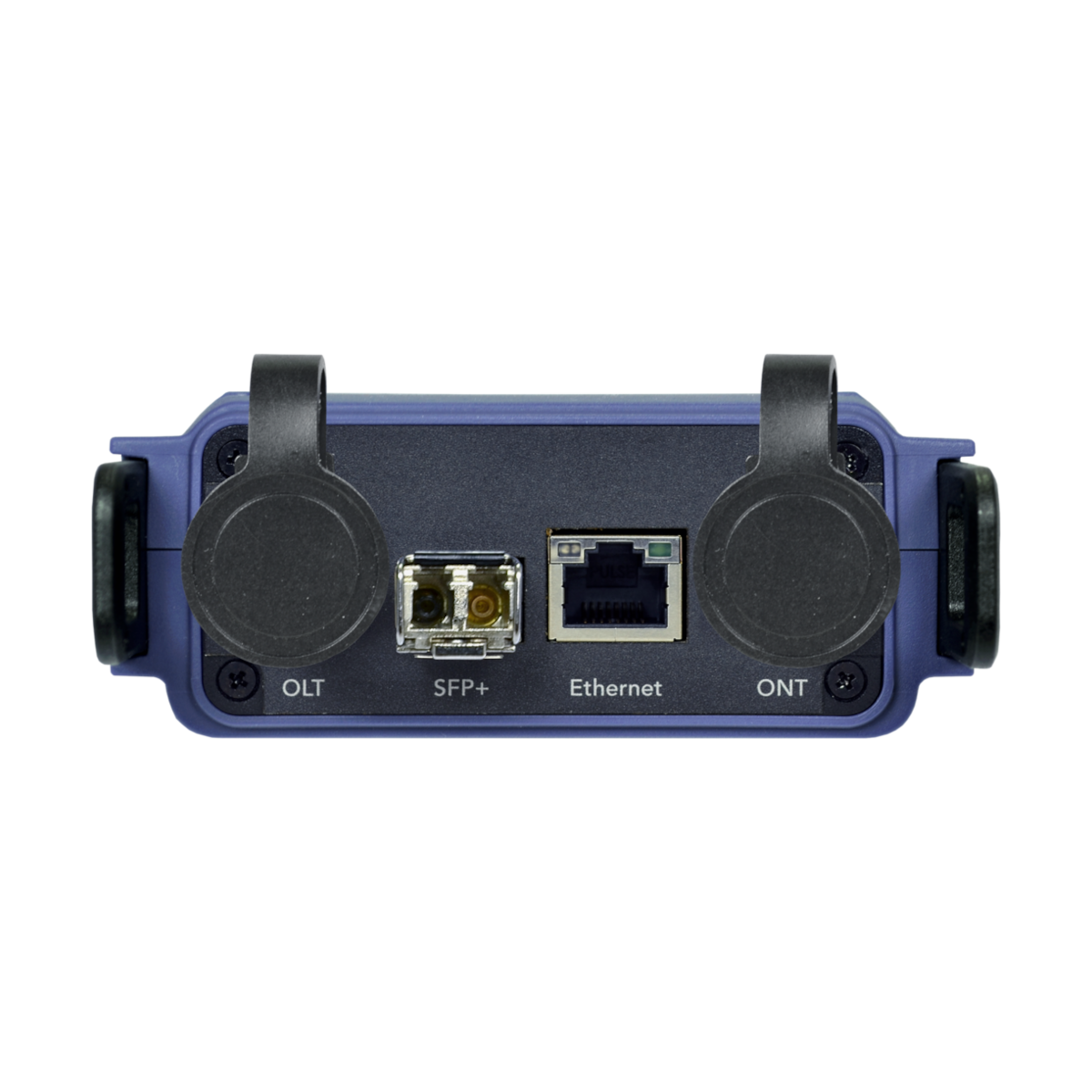

• Now available: patent pending field-replaceable Connector Protector system extends the instrument's lifespan, reduces downtime and improves productivity
• Compatible with GPON and XG(S)-PON networks
• Pass/fail ITU-T/IEEE thresholds enable fast, efficient, and consistent turn-up of services
• Available in Terminated PON meter (PX92T) and Advanced Pass-through PON Analyzer (PX92) configurations
• Simple and intuitive user interface (GUI)
• Flow® for efficient testing and report compilation process
• NoApp® QR code capability for faster result transfer
• Built-in Near Field Communication (NFC) transceiver, compatible with NoApp® cloud service, for immediate test results transfer and sharing
• Easy report generation and data transfer using R-Server for workflow and results management
• USB-C PD interface for charging, memory sticks and LAN adapters
• Remote access/control via web browser and VNC® client. Compatible with VeEX EZ Remote collaboration services.
• Field upgradeable using USB stick
• Fast boot up time (20 seconds)
• Rechargeable Li-Ion battery includes a low voltage alarm and auto- off function, providing one full day of typical operation and testing
• Built-in Wi-Fi connectivity
• High resolution 5-inch color capacitive touch screen with gesture support
• Rugged and compact form factor

Key Features:

Selective PON OPM

• Wavelength support:
  • PX92: 1490/1577//1270/1310 nm (pass through)
  • PX92T: 1490/1577 nm
• Low pass-through insertion loss: ≤1.5 dB typ. (PX92 only)

GPON/XG(S)-PON

• PON-ID detection including OLT-ID, ODN class, OLT TX power level and ODN link pass/fail (both models)
• PON ONT Emulation (both models)
• ONT ID, serial number and status (PX92 only)

Ethernet

• IPv4/IPv6 and PPPoE, DHCP and static IP
• Ping
• Complete Layer 4+ test suite: V-TEST (Ookla® Speedtest®, VeEXManaged and Manual Modes), V-PERF (RFC6349)
• PPPoE support

Wi-Fi Testing

• IPv4/IPv6, DHCP, and static IP
• Complete Layer 4+ test suite: V-TEST (Ookla® Speedtest®), V-PERF (RFC6349)
• Wi-Fi (802.11 a/b/g/n/ac/ax) 2.4 GHz, 5 GHz and 6 GHz scan, coverage verification and speed test up to 2 Gbit/s

Datasheet

VeEX PX92 & PX92T Datasheet
