Svantek SP 91 akustisk pulskilde
Brug vores chat til teknisk support eller kontakt os via +45 31 33 18 19 eller salg@GOmeasure.dk
- Maksimal SPL - L >125 dBC Peak (målt i 1 meters afstand, semi-fri Håndholdte betingelser)
- Størrelse - 300 x 150 x 100 mm
- Vægt - 2.270 g
- Materiale - Træbaseret materiale, tekstil, metal, porøst absorberende fyld
- Opbevaringsforhold - Temperatur: +15 °C til +25 °C, Luftfugtighed: 30 % til 70 % RH
- Indholdsfortegnelse - SP 91 enhed, høreværn, bæretaske
%0ASt%C3%B8rrelse%20-%20300%20x%20150%20x%20100%20mm%0AV%C3%A6gt%20-%202.270%20g%0AMateriale%20-%20Tr%C3%A6baseret%20materiale,%20tekstil,%20metal,%20por%C3%B8st%20abs...
){kind=link}
Opdag mulighederne
Mere information
Beskrivelse

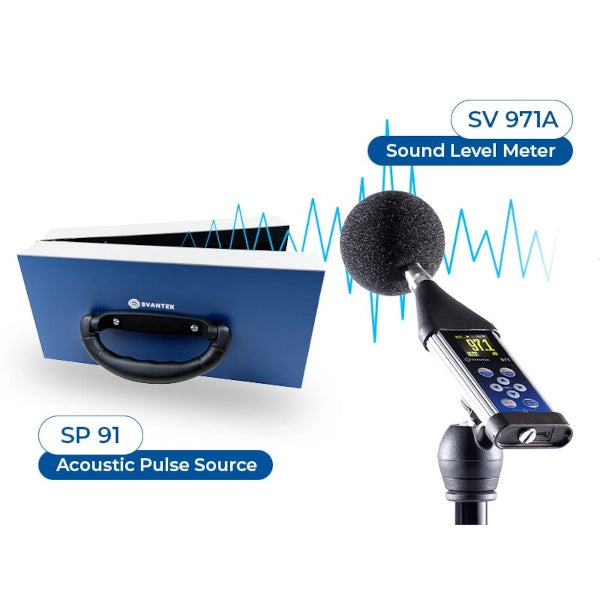

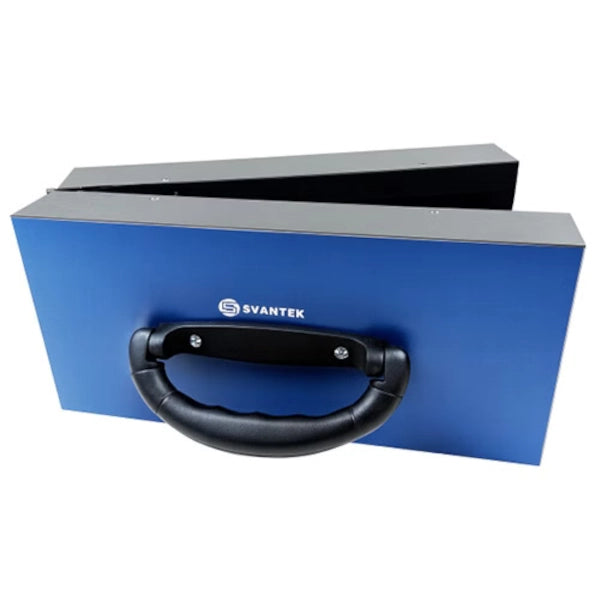

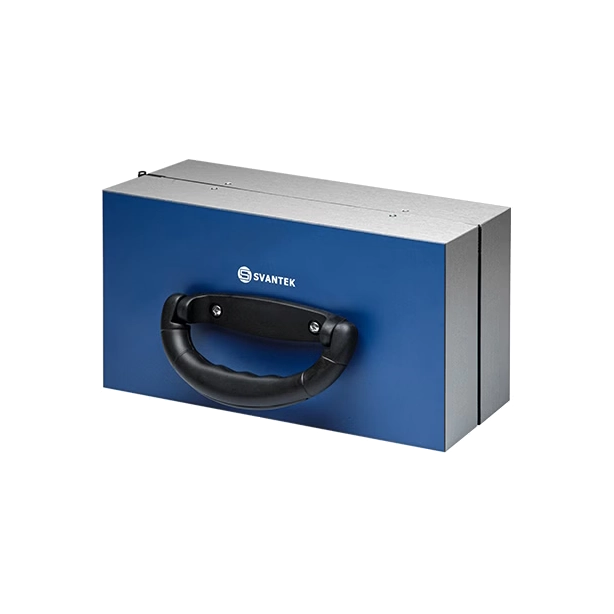

The SP 91 is a hand-operated acoustic pulse source designed for measuring reverberation time (RT60) in small and medium rooms and open or echoey spaces up to approximately 200 m² (600 m³). With peak sound levels up to 125 dB(C), SP 91 delivers a strong, broadband impulse suited to accurate acoustic decay analysis, while its purely mechanical construction provides consistent, repeatable performance without batteries or external power.

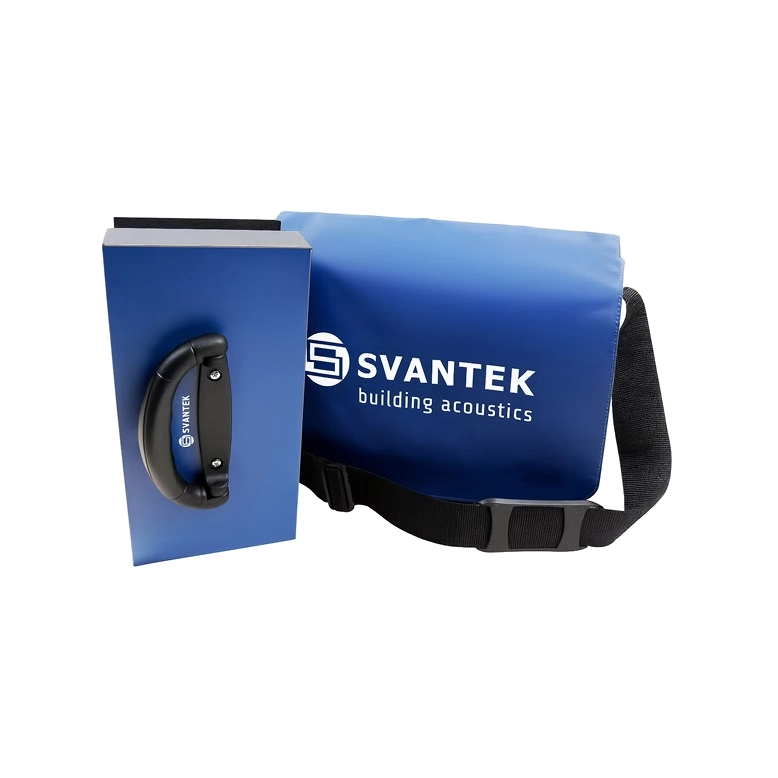

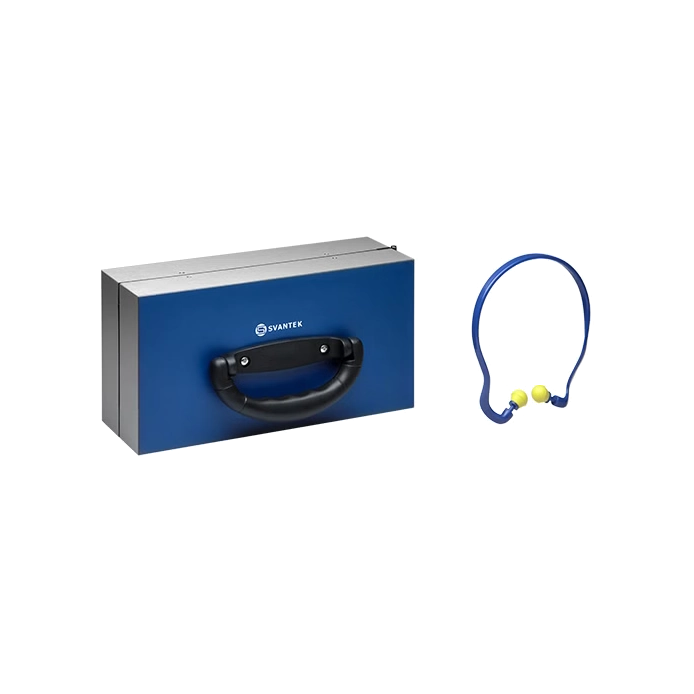

As a durable, sustainable alternative to disposable sound sources such as balloons, SP 91 supports building acoustics measurements and educational demonstrations. Each set includes the acoustic pulse source SP 91, hearing protection, and a lightweight carrying bag for convenient transportation and storage.
Product Highlights
- Hand-operated broadband pulse source: RT60 measurements in small/medium rooms and open/echoey spaces up to ≈200 m² (≈600 m³).
- Peak impulse level >125 dB(C): Measured at 1 m in semi-free field for reliable decay analysis.
- Purely mechanical operation: No batteries or external power; consistent, repeatable impulses.
- Broadband, even spectrum: Well-distributed frequency content supports frequency-dependent RT60 analysis.
- Durable, sustainable alternative: Replaces disposable sources such as balloons.
- Robust construction: Wood-based materials, textile, metal, and porous absorber filling.
- Compact and lightweight: 300 × 150 × 100 mm; ≈2.27 kg for easy transport.
- Supplied as a set: SP 91 unit, hearing protection, and lightweight carrying bag.
Features
Ready to use in field
Mechanical, battery-free operation
Hand-actuated impulse generation suits deployment in small and medium rooms and open or echoey spaces up to ≈200 m² (≈600 m³). Consistent, repeatable output supports RT60 measurements without external power.
Impulse RT60 made easy
Broadband, strong impulse
Peak levels >125 dB(C) at 1 m (semi-free field) provide a clear, broadband response for reliable acoustic decay analysis. Even spectral content supports frequency-dependent RT60 evaluation.
Robust and compact
Durable build, easy transport
Wood-based, textile, and metal elements with porous absorber filling support long service life. The SP 91 set includes hearing protection and a lightweight carrying bag; compact form factor (300×150×100 mm; ≈2.27 kg) facilitates movement between measurement locations.
Applications
Building and room acoustics
Rapid reverberation-time (RT60) assessments in small and medium rooms
The SP 91 acoustic pulse source enables rapid reverberation-time (RT60) assessments in small and medium rooms and in open or highly reflective spaces up to ≈200 m² (≈600 m³). A powerful broadband impulse—peaks up to 125 dB(C) at 1 m in semi-free field—yields clean decay curves and sufficient signal-to-noise for frequency-dependent analysis. Purely mechanical operation supports repeatable multi-position measurements without external power, facilitating on-site surveys and educational demonstrations.
Specifikationer
Dokumenter
Valgmuligheder
Video
Acoustic Pulse Source
Watch our product video to see the SP 91's purely mechanical operation, broadband acoustic impulse, and simple hand-held design. Discover how its consistent, repeatable performance supports accurate RT60 measurements and provides a durable, reliable solution for building acoustics.
