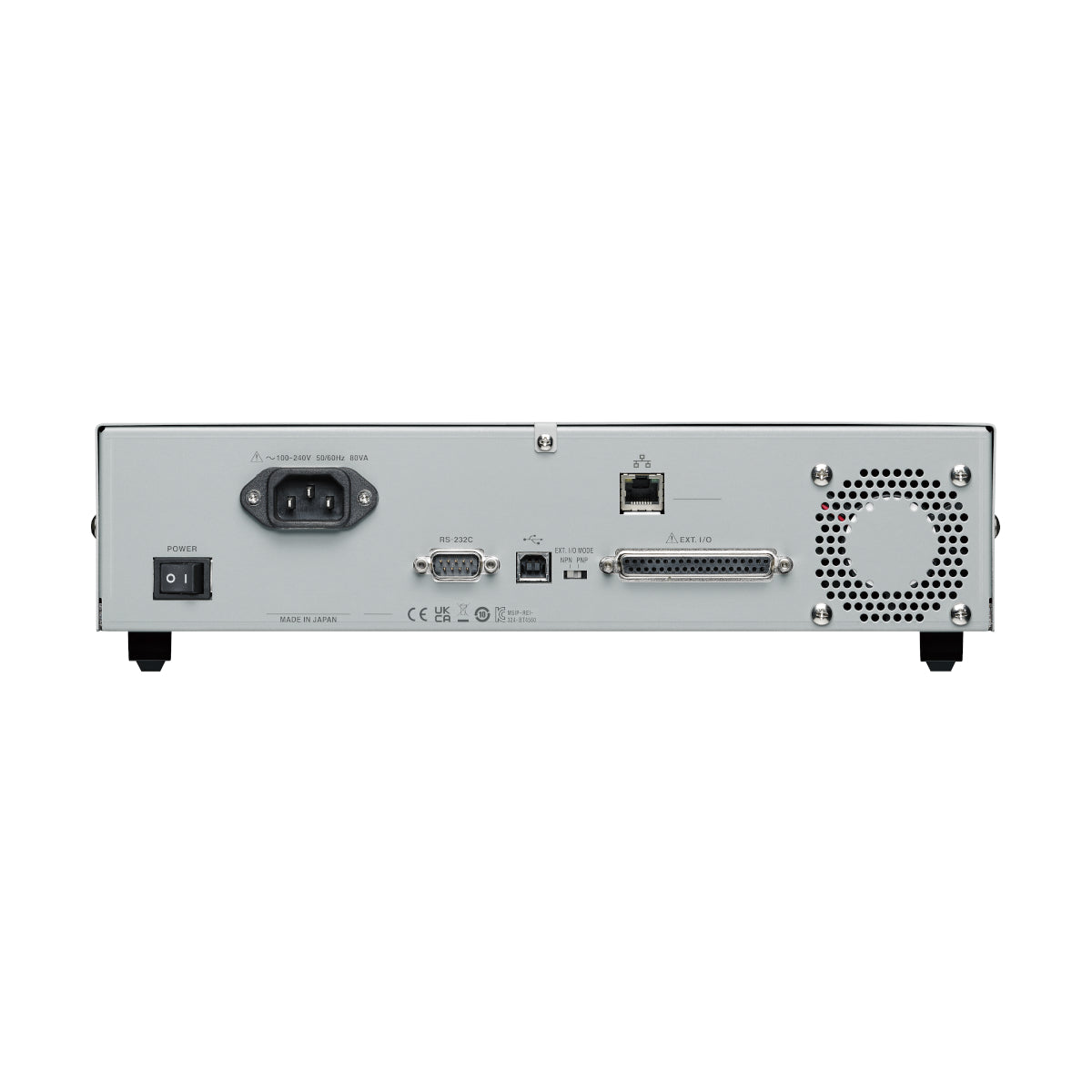

Hioki BT3561A Batteri HiTester
Expected delivery time is 2-3 weeks
Brug vores chat til teknisk support eller kontakt os via +45 31 33 18 19 eller salg@GOmeasure.dk
- Pålidelige EIS-målinger af battericeller med høj kapacitet til EV'er og ESS'er
- EIS-målefrekvens: 0,01 Hz til 10 kHz
- Samtidig måling af impedans, spænding og temperatur
- Praktisk evalueringsapplikationssoftware til F&U-brug
- Datakompatibilitet med tilsvarende tredjeparts kredsløbsanalysesoftware
- Til produktionslinjer
- Skalerbarhed med Switch Mainframe
Opdag mulighederne
Mere information
Beskrivelse
Batteri impedansmåler, til Li-Ion batteritest, lavfrekvent AC-IR metode uden opladning og afladning, R, X, Z og fasevinkelmåling, Max. DCV måling 5V, Testkilders frekvenser fra 0,01 Hz til 1050 Hz, Max. testkilde strøm: 1,5 Arms, Minimum måleområde 3 mOhm, LAN/USB/RS-232C kommunikationsinterface udstyret, Ext. I/O udstyret
Specifikationer
Basic specifications
Accuracy guaranteed: 1 year
| Allowable input voltage | Up to 5 V | |||||
|---|---|---|---|---|---|---|
| Measured items | Impedance, voltage, temperature | |||||
| Impedance measurement | Parameters: R (resistance), X (reactance), Z (impedance), θ (phase angle) Frequency: 0.01 Hz to 10.00 kHz (For the 1.06 kHz to 10.00 kHz range, measurements below 1 mΩ in the 3 mΩ and 10 mΩ ranges, and below 10 mΩ in the 100 mΩ range, are not covered by the accuracy guarantee.) Measurement ranges: 3.0000 mΩ, 10.0000 mΩ, 100.000 mΩ Measurement current: 3 mΩ range: 1.5 A rms, 10 mΩ range: 500 mA rms, 100 mΩ range: 50 mA rms | |||||
| Voltage measurement | Measurement range: 5.00000 V (single range), measurement time: 0.1 s (FAST) to 1.0 s (SLOW) | |||||
| Temperature measurement | Range: -10.0°C to 60.0°C, measurement time: 2.3 s | |||||
| Basic accuracy | |Z| : ±0.4% rdg. θ: ±0.1°, V: ±0.0035% rdg. ±5 dgt., Temperature: ±0.5°C (at 10.0°C to 40.0°C) | |||||
| Functions | Comparator, self-calibration, sample delay, average, voltage limit, potential gradient compensation for impedance measurement, charge/discharge prevention during AC signal application, key lock, system test, panel saving and loading (up to 126 condition sets) | |||||
| Interfaces | LAN, RS-232C, USB, EXT. I/O (NPN/PNP can be switched) | |||||
| Power supply | Rated supply voltage: 100 V to 240 V AC Rated supply frequency: 50 Hz/60 Hz Rated power 80 VA max | |||||
| Dimensions and weight | Approx. 330W × 80H × 293D mm (12.99W × 3.15H × 11.54D in.), approx. 3.8 kg (134.0 oz.) | |||||
| Included accessories | Power cord × 1, instruction manual × 1, zero-adjustment board × 1, USB cable (A-B type) × 1 | |||||
Dokumenter
Brochure:
Valgmuligheder
Video
Batteri impedansmåler, til Li-Ion batteritest, lavfrekvent AC-IR metode uden opladning og afladning, R, X, Z og fasevinkelmåling, Max. DCV måling 5V, Testkilders frekvenser fra 0,01 Hz til 1050 Hz, Max. testkilde strøm: 1,5 Arms, Minimum måleområde 3 mOhm, LAN/USB/RS-232C kommunikationsinterface udstyret, Ext. I/O udstyret
Basic specifications
Accuracy guaranteed: 1 year
| Allowable input voltage | Up to 5 V | |||||
|---|---|---|---|---|---|---|
| Measured items | Impedance, voltage, temperature | |||||
| Impedance measurement | Parameters: R (resistance), X (reactance), Z (impedance), θ (phase angle) Frequency: 0.01 Hz to 10.00 kHz (For the 1.06 kHz to 10.00 kHz range, measurements below 1 mΩ in the 3 mΩ and 10 mΩ ranges, and below 10 mΩ in the 100 mΩ range, are not covered by the accuracy guarantee.) Measurement ranges: 3.0000 mΩ, 10.0000 mΩ, 100.000 mΩ Measurement current: 3 mΩ range: 1.5 A rms, 10 mΩ range: 500 mA rms, 100 mΩ range: 50 mA rms | |||||
| Voltage measurement | Measurement range: 5.00000 V (single range), measurement time: 0.1 s (FAST) to 1.0 s (SLOW) | |||||
| Temperature measurement | Range: -10.0°C to 60.0°C, measurement time: 2.3 s | |||||
| Basic accuracy | |Z| : ±0.4% rdg. θ: ±0.1°, V: ±0.0035% rdg. ±5 dgt., Temperature: ±0.5°C (at 10.0°C to 40.0°C) | |||||
| Functions | Comparator, self-calibration, sample delay, average, voltage limit, potential gradient compensation for impedance measurement, charge/discharge prevention during AC signal application, key lock, system test, panel saving and loading (up to 126 condition sets) | |||||
| Interfaces | LAN, RS-232C, USB, EXT. I/O (NPN/PNP can be switched) | |||||
| Power supply | Rated supply voltage: 100 V to 240 V AC Rated supply frequency: 50 Hz/60 Hz Rated power 80 VA max | |||||
| Dimensions and weight | Approx. 330W × 80H × 293D mm (12.99W × 3.15H × 11.54D in.), approx. 3.8 kg (134.0 oz.) | |||||
| Included accessories | Power cord × 1, instruction manual × 1, zero-adjustment board × 1, USB cable (A-B type) × 1 | |||||
