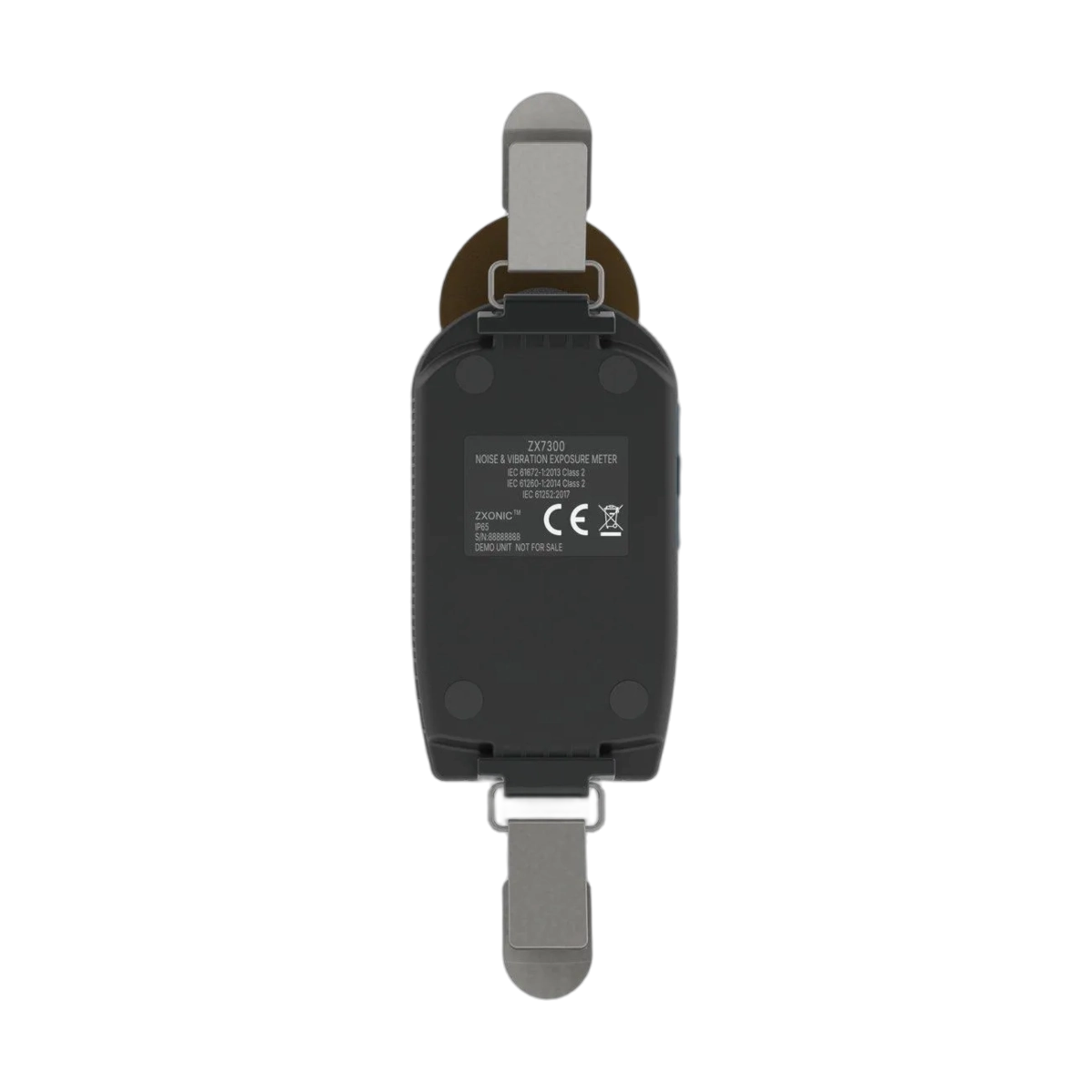

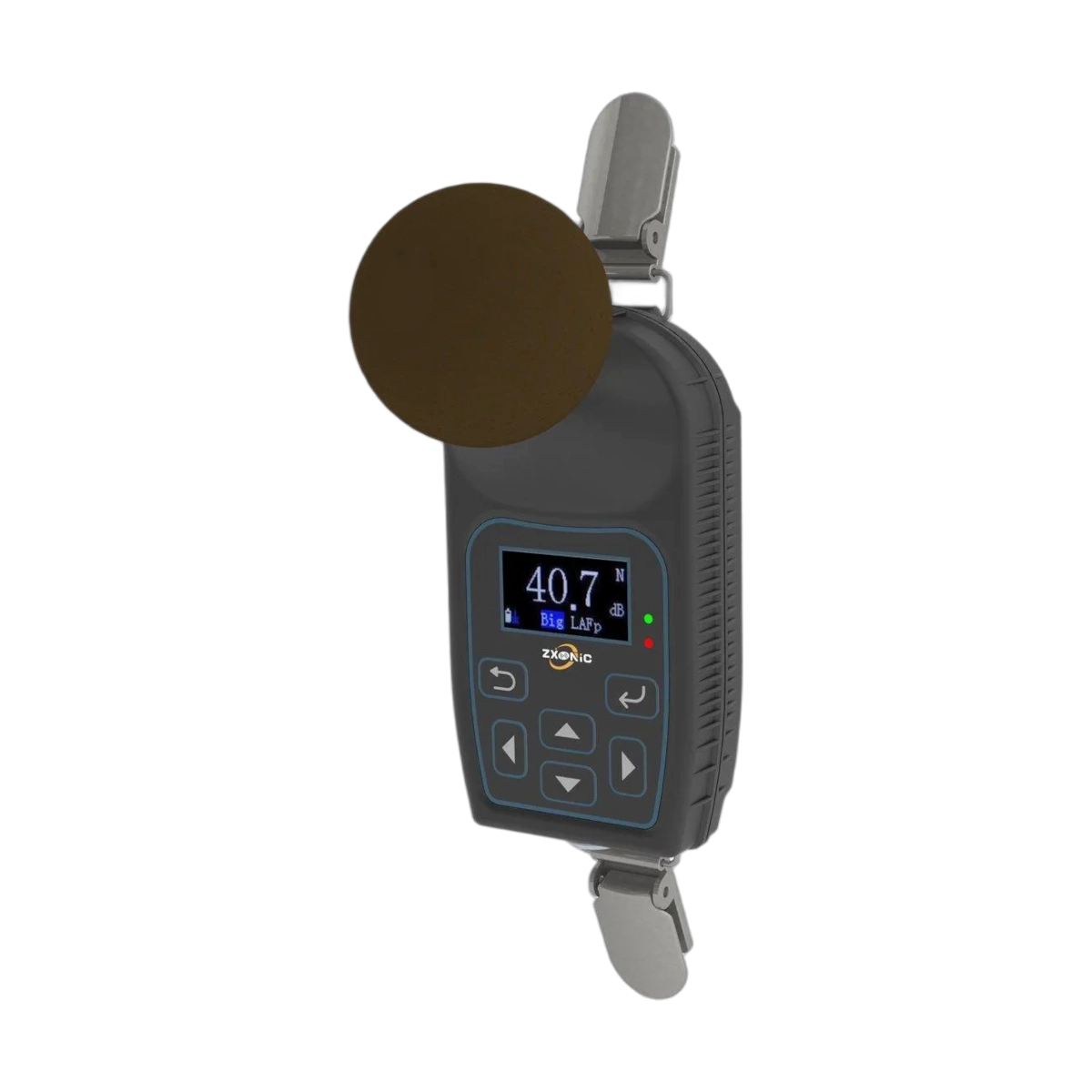

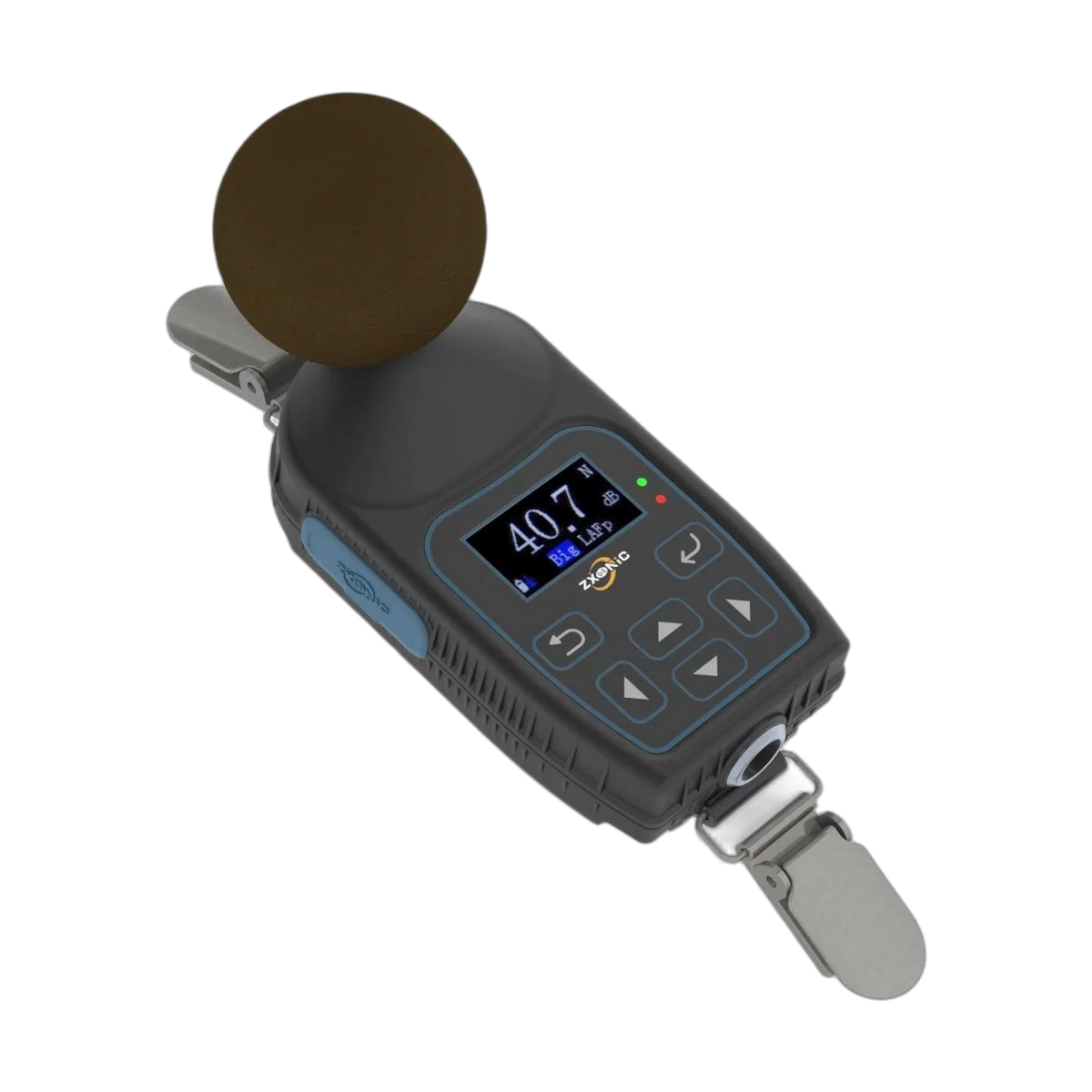

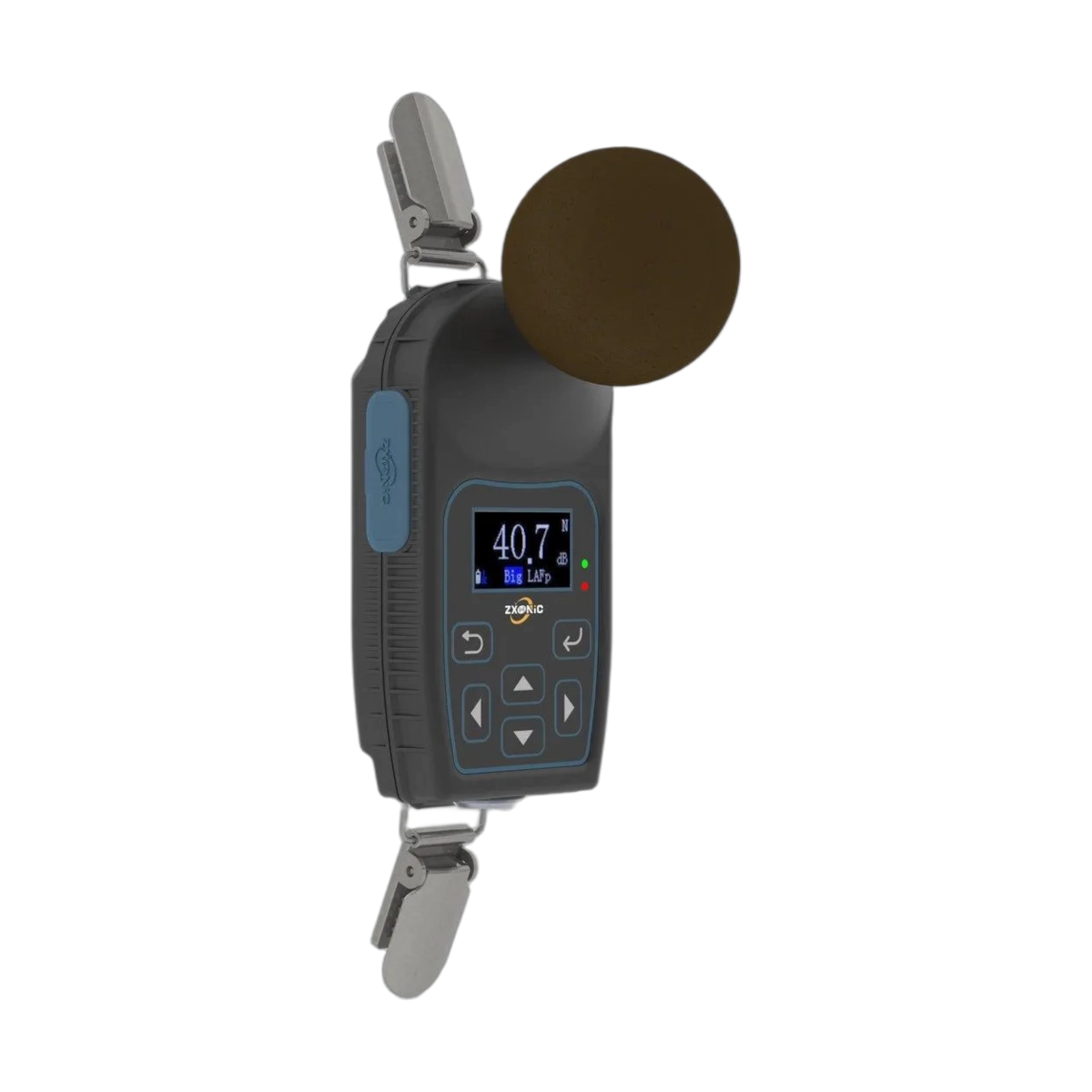

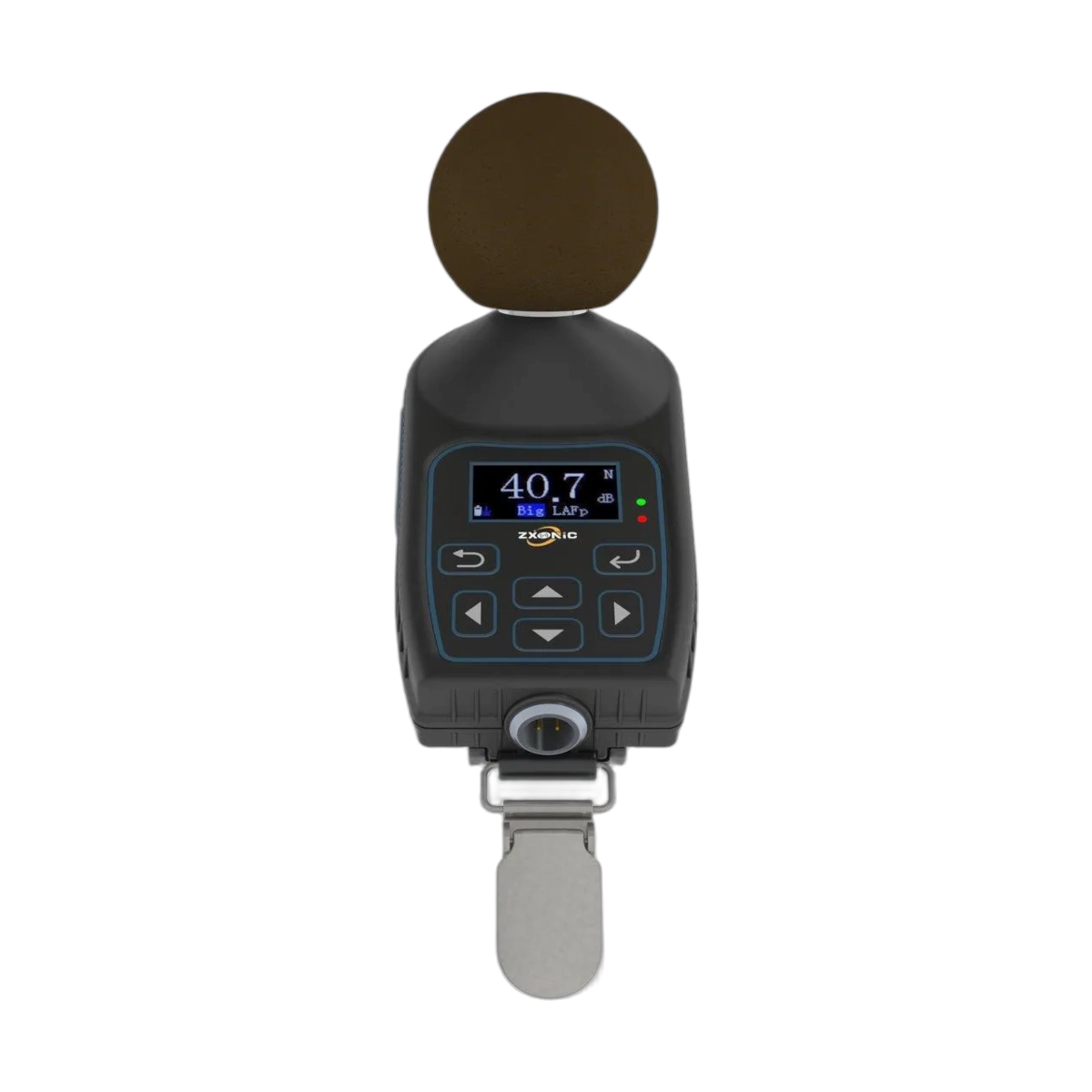

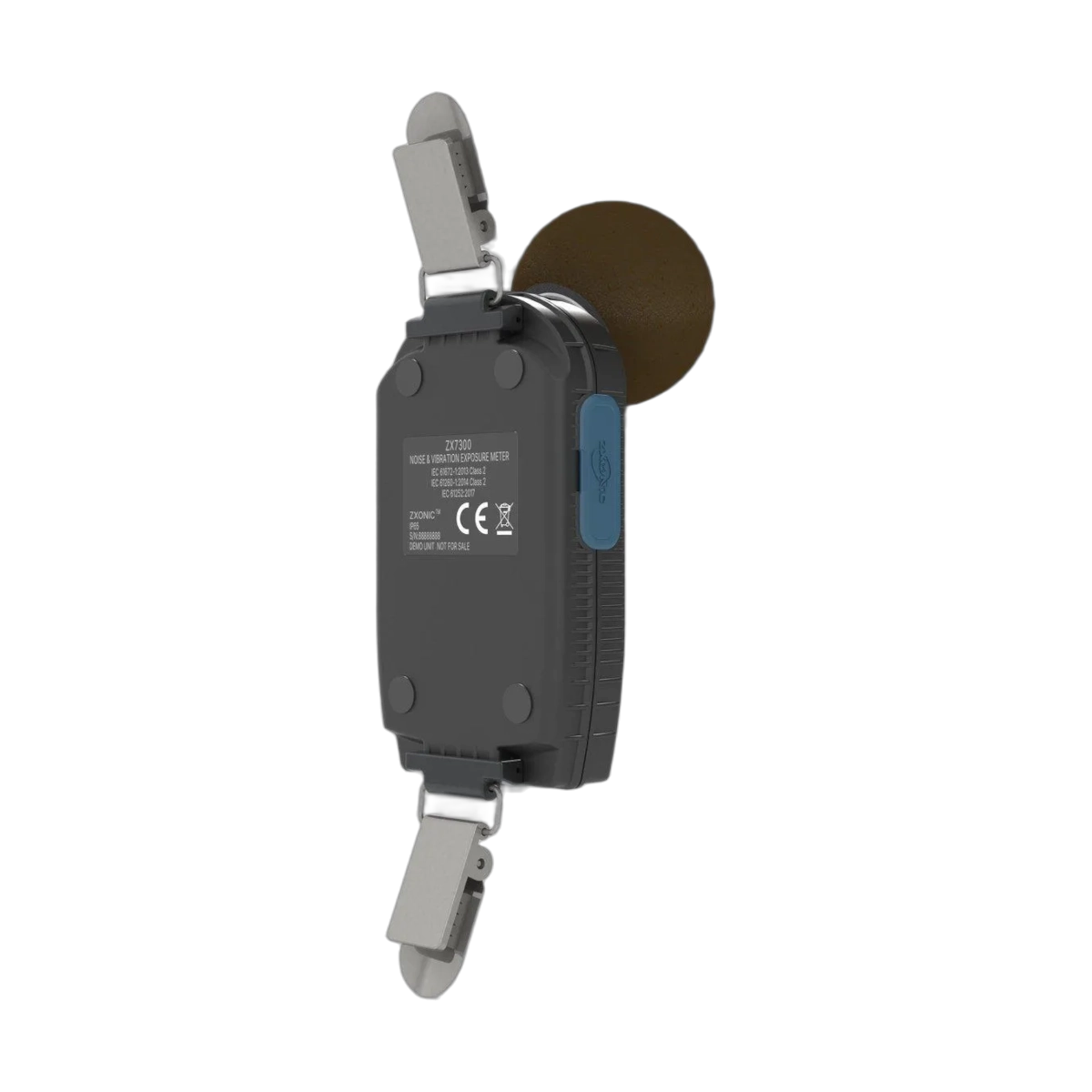

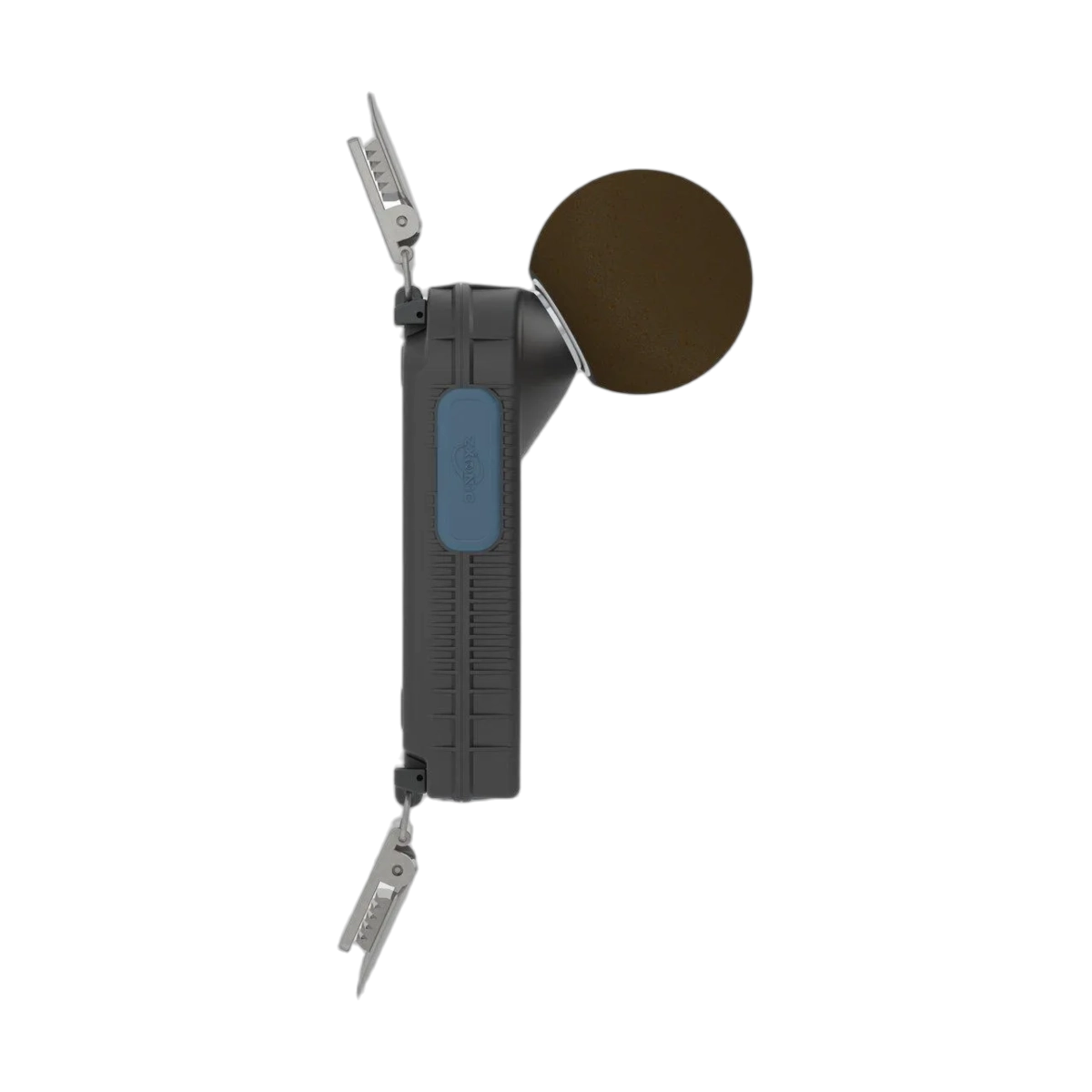

ZXONIC ZX7300 Personal Noise & Vibration Exposure Meter
Use our chat for technical support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Compact and lightweight, measuring 90 mm x 49 mm x 64 mm and weighing only 119 g (4.2 oz).
- IP65-rated, offering strong protection against dust and water for reliable outdoor and industrial use.
- 1.3” TFT color LCD with 240 x 240 resolution for a clear and intuitive user interface.
- Display up to 6 measurement indicators simultaneously.
- Wide frequency range of 20 Hz to 12.5 kHz, and dynamic range of 51 dB to 142 dB.
- ZX7500 is compliant to IEC 61252:2017, IEC 61672-1:2013 Class 2, and IEC 61260-1:2014 Class 2.
- Typical 30 hours, up to 40 hours of continuous operation
.%0AIP65-rated,%20offering%20strong%20protection%20against%20dust%20and%20water%20for%20reliable%20outdoor%20and%20industrial%20use.%0A1....
){kind=link}
Discover the possibilities
More information
Description
ZX7300 Series Personal Noise & Vibration Exposure Meter is engineered for comprehensive noise and vibration exposure monitoring in workplace safety applications. Weighing only 100 g, it features a lightweight and ergonomic design for long-term comfort and minimal interference with daily work. Compliant with IEC 61672-1 Class 2, IEC 61252, and ISO 8041-1, and Combining the functions of a personal noise dosimeter and a vibration exposure meter, the ZX7300 ensures precise and reliable assessment of multiple physical factors affecting workers’ health.
The design concept emphasizes completely hands-free operation — users do not need to handle or control the instrument during setup or measurement. All functions, including startup, pause for worker breaks, and data review, are seamlessly managed via wireless connection to a tablet on the Android platform.
Get to know ZX7300 Personal Noise & Vibration Exposure Meter
Equipped with Type 1021 Microphone
A cost-effective solution for dependable noise measurement.
Engineered for Insight.
1/1, 1/3 Octave Band (Optional).
Lighter than Ever.
Only 100 grams, wear it seamlessly.
Compliant to IEC 61252, ANSI S1.25, OSHA 29
Built to meet global standards for personal sound exposure meters.
The ZX7300 is a compact and ergonomic instrument designed for comprehensive noise and vibration exposure monitoring in workplace safety applications. Weighing only 100 g, it combines comfort, precision, and durability, enabling accurate measurement of multiple physical factors affecting workers’ health — all controlled wirelessly via an Android tablet without any need to touch the instrument during setup or operation.
Features
- Dual-function design for noise and vibration exposure measurement
- Hands-free operation — full control via wireless Android Pad (start, pause, review)
- Compliant with IEC 61672-1 Class 2, IEC 61252, and ISO 8041-2
- IP65-rated enclosure for use in harsh industrial environments
- Lightweight 100 g body with ergonomic and comfortable design
- Wireless data transmission and synchronized recording for spectral analysis
- Ideal for occupational hygiene, industrial, and construction applications
Standards
- IEC 61252:2017
- Class 2:IEC61672-1:2013
- Class 2:IEC61260-1:2014
Applications
- Workplace Noise Dose
- Workplace Vibration Exposure
- Sound Level Measurement
- Time History Recording
Specifications
Sound Measurement Features
- Total Measurement Range: 53 – 143 dB(A), 50 – 143 dB (C), 57 – 143 dB (Z)
- Internal Noise: < 47.5 dB(A), < 50 dB(C), < 57 dB(Z)
- Frequency Range: 20 Hz – 12.5 kHz
- Frequency Weighting: A, C, Z
- Time Constants: Parallel F (fast), S (slow), I (impulse)
- Exchange Rates: 2, 3, 4, 5, 6
- Measurement Parameters:
- Lex,8h; Leq,T; E; Dose; LAVG; SEL; TWA; Ln; Lmax; Lmin; SD
- *Peak C Sound Level Measurement Range: 70 – 146 dB
- Statistics: optional
- Measurement Time: 1 second to 24 hours
*x represents A,C,Z.
*y represents F,S, l.
*N represents 5,10,50,90,95.
Vibration Measurement
- Vibration Measurement Range: 0.2 m/s² – 280 m/s²
- Vibration Frequency Range: 4 Hz – 2 kHz
- Measurement Parameters:
- arms,T; apeak,T; awh,4h; VLwh,T; VLa,T; amax; VLwhmax; VLamax; amin; VLwhmin; VLamin
Note: Nominal sensitivity is 1.8 mV/(m·s⁻²)
Display
- Size: 1 inch
- Type: Color LCD
- Resolution: 64 x 128
Data
- Data Interface: Blutooth, IO Protocol, USB-C
- Data Storage: 512 Kb Internal/32 Gb TF Card (Optional)
- Audio Recording:
- 51.2/12.8 kHz Sample Rate
- 32-bit precision
- .WAV/ format
- playback in APP
- Voice Comments: N/A
Power
- Power (Basic Functions): < 0.45W
- Battery Type: 3.7 V 1000mAh lithium battery
- Operating Time: Up to 40 hours
- External Power: USB-C
Operating Conditions
- Temperature Range: -10 °C – 50 °C
- Humidity Range: 10 % – 95 %
- Pressure Range: 65 kPa – 103 kPa
Hardware
- Number of Channels: 1
- Microphone: ZX1021
- Preamplifier: Integrated
- Weight: 100 g
- Dimensions (mm): 100 × 50 × 48
