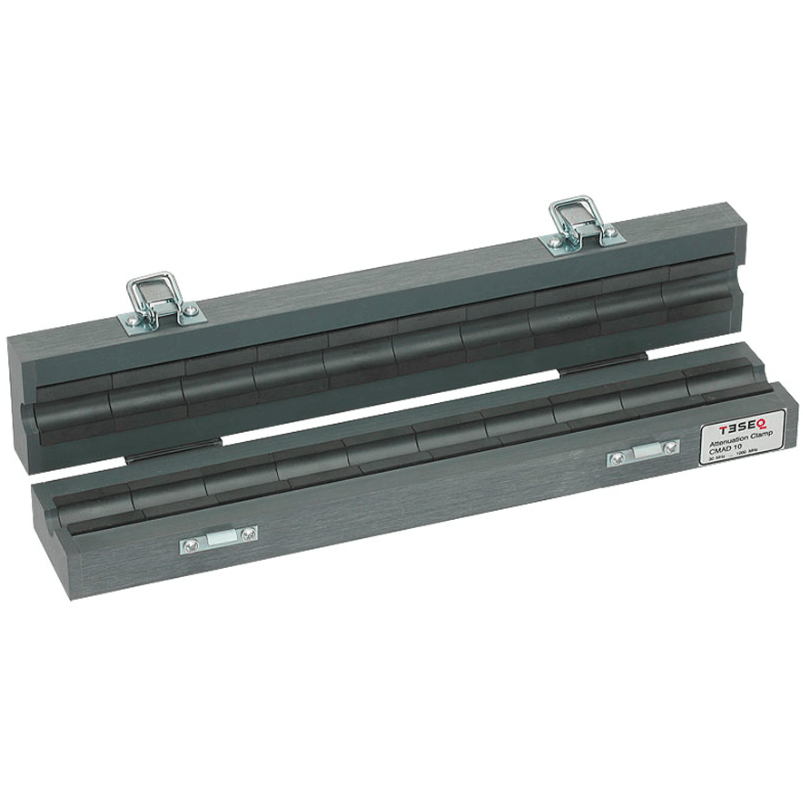

TESEQ CMAD 10 Common Mode Absorption Device

Sale price0,00 DKK Price on quotation
Available

Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk


  • Frequency range 1 MHz to 1 GHz
  • Max. cable diameter 10 mm
  • Cable termination for radiated emission and immunity tests
  • Ideal for testing in GTEM cells

Discover the possibilities

More information

TESEQ CMAD 10 Common Mode Absorption Device



Reproducible emissions measurements require a defined line termination for the frequency range where connected lines provide a significant influence on the emissions. The key parameter is the asymmetrical impedance (common-mode impedance) which can be seen as the common mode impedance to the reference ground.




ParameterValue
Frequency range for general use1 MHz to 1000 MHz
Maximum cable diameter10 mm
Dimension (LxWxH)293 mm x 63 mm x 40 mm
Weightapprox. 1.7 kg
