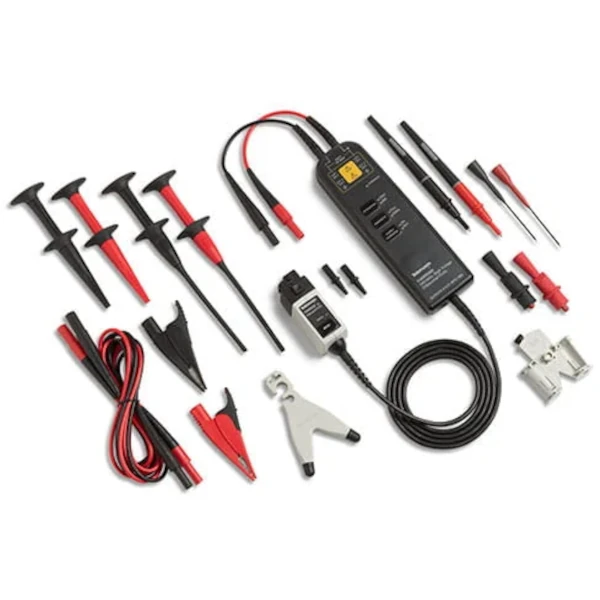

Tektronix TDP0500 HV diff. Probe

Sale price0,00 DKK Price on quotation
Available

Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk


  • Attenuation: 5X / 50X
  • Bandwidth: 500 MHz
  • Input Impedance: 1 MΩ || 1 pF
  • Maximum Voltage: 50X:  ± 42 V 5X: ± 4.2 V

Discover the possibilities

More information

A high voltage differential probe is used for measuring the voltage difference between two test points where neither test point is at ground.  High voltage differential probes from Tektronix can be used for signals up to 6000 V. This type of high voltage probe is the best choice for making non-ground referenced, floating or isolated measurements in large part due to its common mode rejection capability. These products are designed, manufactured, and serviced by Tektronix.

Tektronix High Voltage Differential Probe solutions offer:

  • Best-in-class bandwidth and probe loading
  • The only products with 3rd Party Safety Certification (UL, CSA, ETL)
  • High and medium voltage products to support varying dynamic range and measurement resolution requirements
  • Most extensive set of probe accessories






For more information: Tektronix
