Sealevel 2801 USB to 8-Port RS-232 DB9 Serial Interface Adapter
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Compliant with RoHS and WEEE directives
- High-speed UART with 128-byte Tx FIFO and 384-byte Rx FIFO
- Data rates to 460.8K bps
- All modem control signals implemented
- Serial and USB activity LEDs
Discover the possibilities
More information
Description

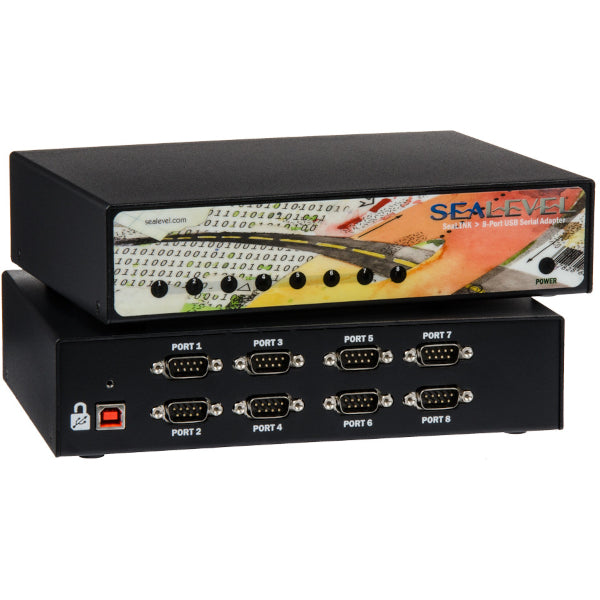

The Sealevel 2801 USB serial I/O adapter provides eight RS-232 serial ports for USB connectivity to legacy or non-USB compliant devices.
The Sealevel 2801 is housed in a rugged metal enclosure making it ideal for rugged and industrial environments. The adapter integrates Sealevel’s SeaLATCH locking USB port, which is fully compatible with standard USB cables. When used with the included USB cable with a locking type B connector, the metal thumbscrew provides a secure connection to the device and prevents accidental cable disconnection. Additionally, the high-retention type B connector helps prevent unintentional separation from a standard USB cable.
Sealevel SeaCOM USB software drivers and utilities make installation and operation easy using Microsoft Windows and Linux operating systems. After installing the software, simply plug the 2801 into an available USB port. The serial ports are recognized as standard COM ports by the host system enabling compatibility with legacy software.
All Sealevel SeaLINK USB serial adapters use a state-machine architecture that greatly reduces the host computer’s overhead when communicating over multiple serial ports simultaneously while supporting data rates to 460.8K bps. Status LEDs on the front of the enclosure indicate power and serial data activity on each port.
Standard operating temperature range is 0°C to 70°C and extended temperature range (-40°C to 85°C) is optional.
Features
- Compliant with RoHS and WEEE directives
- High-speed UART with 128-byte Tx FIFO and 384-byte Rx FIFO
- Data rates to 460.8K bps
- All modem control signals implemented
- Serial and USB activity LEDs
- Hot-swappable
- Powered by USB connection
- Sealevel’s SeaLATCH locking USB port provides secure connection with SeaLATCH USB cables via metal thumbscrews
- Sealevel software supports Windows and Linux operating systems
- DB-9M connectors
- Includes 6′ USB type A to SeaLATCH USB type B device cable (Item# CA356)
Specifications
| Family | SeaLINK |
|---|---|
| Max Data Rate | 460.8K bps |
| Dimensions | 8.7" (L) x 6.1" (W) x 2.0" (H) |
| Electrical Interface | RS-232 |
| High Retention USB | Yes |
| Humidity Range | 10 – 90% Relative Humidity, Non-Condensing |
| Host Interface(s) | USB |
| Max Data Distance | 50 feet |
| Communications Chip | USB/UART |
| # of Ports | 8 |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Power Requirement | +5V @ 500mA |
| RoHS Compliant | Yes |
| SeaLATCH Locking USB | Yes |
| Serial Connector(s) | DB9M |
| Storage Temperature | -50°C to 105°C (-58°F to 221°F) |
| USB Powered | Yes |
| USB Specification | 1.1 Compliant2.0 Compatible |
For more information: Sealevel
