PONTIS EMC foHDMI (up to 1.2)

Sale price0,00 kr Price on quotation
Available

Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk


  • Full HD 1080 p, uncompressed
  • Unidirectional,10.2 GBit/s High speed duplex (up to HDMI 1.2)
  • Max. distance 200 m
  • EMC compliant to CISPR 25, Class5

Discover the possibilities

More information

PONTIS EMC foHDMI (up to 1.2)





In complex testing environments it is often needed that electrical signals have to be transmitted into the chamber or out of the chamber to the test equipment.

For that purpose we offer a variety of different interfaces that convert electrical signals into optical signals and back. Such the signal can be transmitted via fibre optics and is immune against electrical fields.

A sophisticated shielding and filtering concept ensures that the interfaces are highly immune against radiation and do not deliver out any significant emission.






In most cases both units are shielded.



Features

  • RF-Immunity: Antenna radiated 200 V/m, 200MHz – 18GHz, ISO11452-2, CW, AM, PM Stripline 200 V/m, 10 – 1 GHz, ISO11452-5, CW, AM, PM
  • Emission: EMC compliant to CISPR25 Class 5, 150 k – 4 GHz
  • Battery (approx. 8 hours operation) or mains powered
  • Compact metal housing
  • No galvanic connection between test equipment and measurement instruments
  • Max. HD resolution 1920 x 1080, up to 60 Hz
  • Unidirectional signal transfer (HDMI up to version 1.2)

Accessories

Standard:

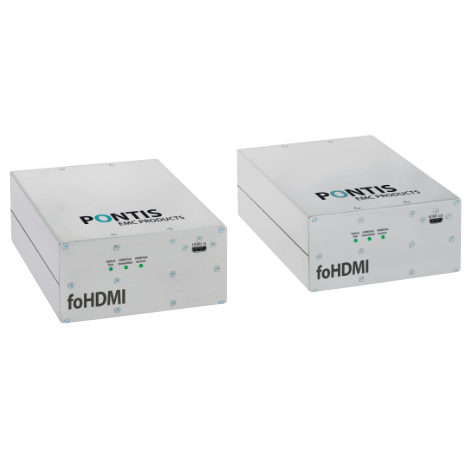

  • One set consists of two shielded converter units: Converter 1: transmitter (to connect with source of signals); Converter 2: receiver (to connect with receiver of signals e.g. TV Set)
  • Special shielded HDMI cable, 2.0 m
  • All converters are shipped with the appropriate power supply or battery and charger






Optional:
  •  Fibre optic cables: variable lengths ST/FSMA- connector or ST/ST-connector
  • FO-Patches (Feed Through wall Patches)
