Keithley 2260B-80-27 Programmable DC Power Supplies

Sale price19.950,00 DKK
24.937,50 incl. VAT
Order Item

Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk


  • Max Output Power - 720 W
  • Maximum Voltage - 80 V
  • Maximum Current - 27 A
  • Connectivity - USB, LAN, GPIB, Analog

Discover the possibilities

More information

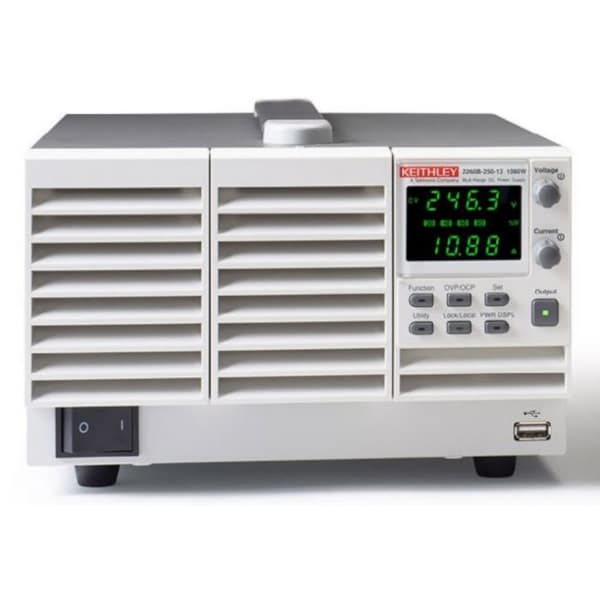

Keithley 2260B-80-27 Programmable DC Power Supplies

Source a wide range of voltages and currents with the 360W, 720W, or 1080W Series 2260B Programmable DC Power Supplies. The 360W versions can output current of 36A, 13.5A, 4.5A, or 1.44A; the 720W models can output 72A, 27A, 9A, or 2.88A; and the 1080W instruments can output 108A, 40.5A, 13.5A or 4.32A. This wide range of output voltages and current, combined with multiple interface choices, makes the Series 2260B ideal for use in a wide range of applications, including research and design, quality control, and production test.

Features

Benefits

Programmable voltage or current rise and fall times from 0.1V/s to 1600V/s or 0.01A/s to 216A/s (model dependent)Prevents damage from inrush current to loads that have low impedance when power is initially supplied.
Constant current priority settingReduces voltage and current overshoot when powering LEDs.
Programmable output resistanceAllows simulating a battery’s output characteristics.
Analog input controlSupports creating voltage profiles that simulate how a battery responds to a fast changing load current or generating a combined DC output level with an AC signal superimposed on it to test how a circuit responds to noise on its DC power source.
Internal test sequence modeAllows outputting a set of voltage levels for varying time intervals at each level. The test sequence can be stored and used repeatedly to determine DUT performance at different levels.
Series or parallel configurableDelivers up to 3240W when three units are combined in parallel.
Fast discharge capability and 1ms transient recovery time to load changes.Minimizes test times in automated test systems.
Fit six 360W, three 720W, or two 1080W units in a standard rack widthSave bench and test system rack space.
