Anritsu ME7868A Distributed Modular 2-port VNA

Sale price0,00 DKK Price on quotation
Available

Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk


  • 2-port VNA with frequency options from 1 MHz to 8 GHz / 20 GHz / 43.5 GHz
  • Extend remote ports 100+ meters apart with PhaseLync synchronization
  • Small and lightweight ports enable direct connection to DUT eliminating long cable runs
  • Guaranteed performance to 43.5 GHz with Extended-K™ ports
  • PC control takes advantage of external computer processing power and functionality
  • No on-board data storage makes use in secure applications more convenient
  • Common ShockLine control software delivers powerful debug and test capabilities

Discover the possibilities

More information

Anritsu ME7868A Distributed Modular 2-port VNA

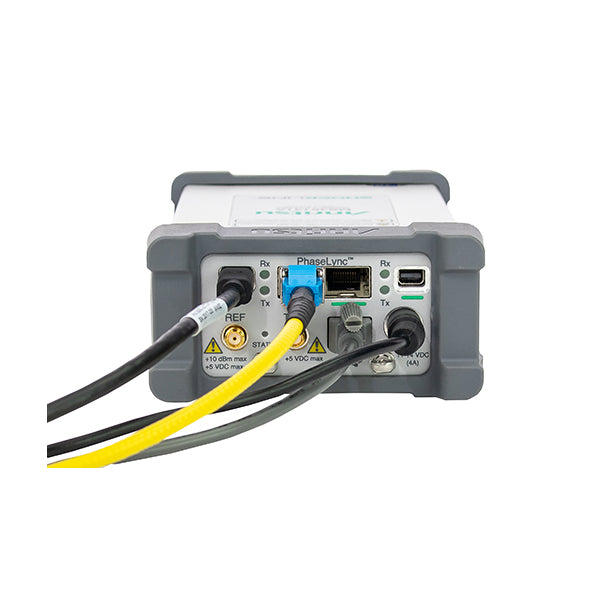

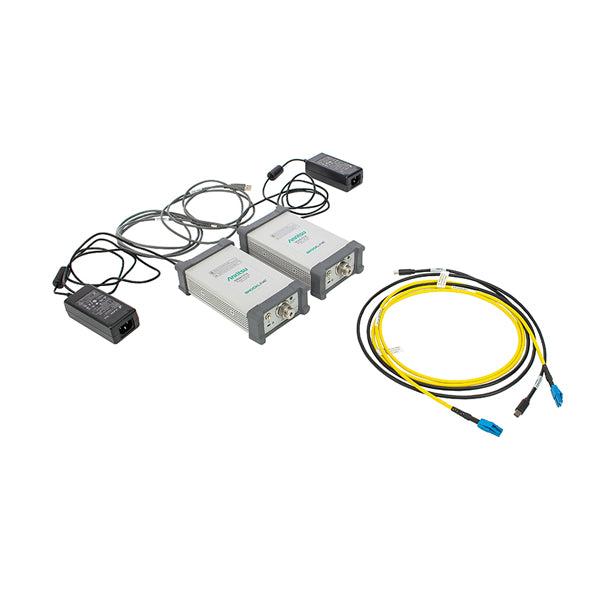

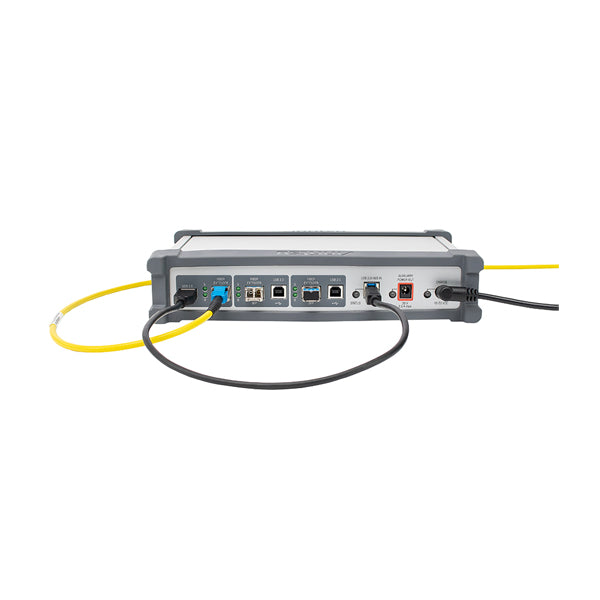

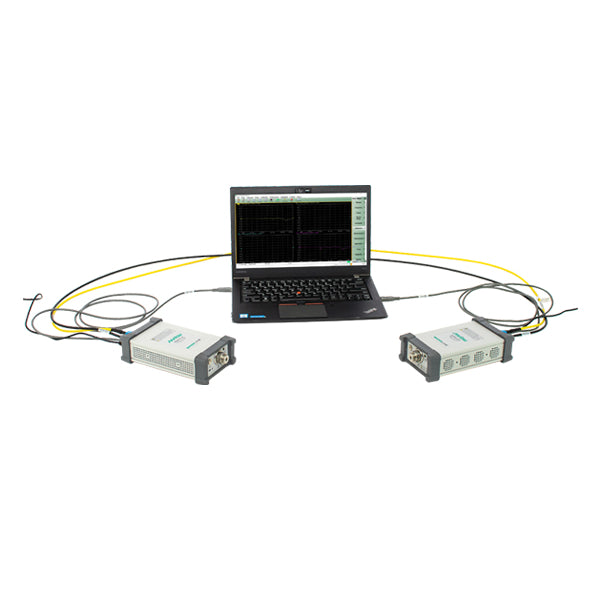

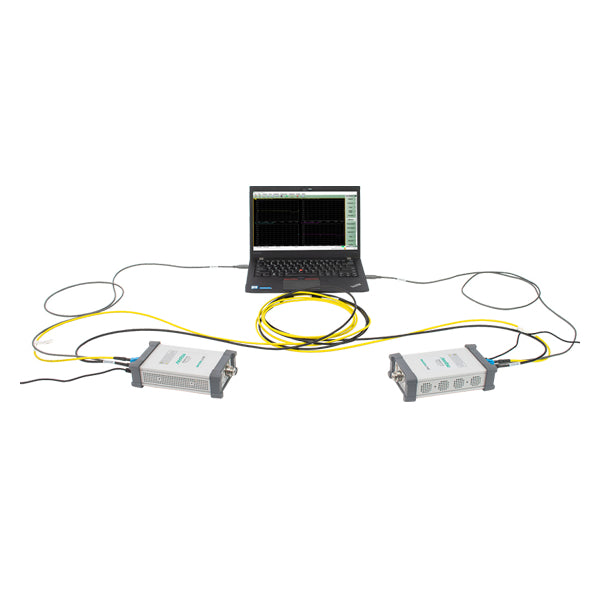

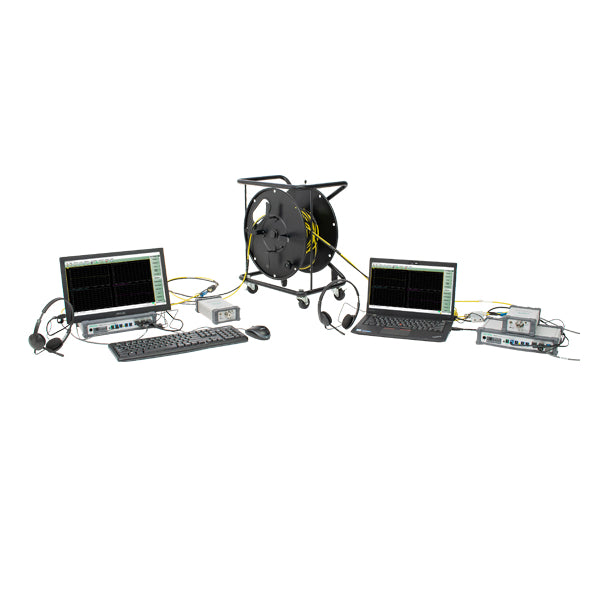

The ShockLine™ Anritsu ME7868A system is the first distributed, fully reversing 2-port VNA solution that provides guaranteed performance from 1 MHz to 43.5 GHz by utilizing Anritsu’s Extended-K™ components. Powered by the revolutionary PhaseLync™ technology, it enables engineers to synchronize two portable ShockLine MS46131A VNAs and connect them directly to a DUT to conduct vector transmission measurements over distances of 100 meters or more. Whether in a manufacturing, engineering, or education environment, this solution simplifies long-distance S-parameter measurements and VNA test system integration by removing the need to utilize conventional benchtop VNAs with long cable runs, which eliminates insertion loss, improves measurement stability, and lowers setup costs.

The ShockLine ME7868A offers a configurable VNA setup to maximize hardware utilization. Easily set VNA port count (single 1-port, dual 1-ports, or single 2-ports) from session-by-session to ensure maximum flexibility. With low-pass time domain with time gating option, users have access to a TDR-like display with more resolution than bandpass time domain for characterizing discontinuities. Because there is no onboard data storage, this eliminates the need to purge data for secure applications.


Applications

Long distance S-parameter measurements
  • Long cable insertion loss testing
  • Antenna testing
  • Over the Air (OTA) Applications
    • Chamber installations
    • Large vehicle RF shielding and propagation testing



System Integration Application
  • System Calibration
  • Path-loss Characterization
  • General s-parameters and time domain measurements



Secure Area Applications
  • No data storage on unit
  • Secure external computer control through direct USB connection


For more information: Anritsu
